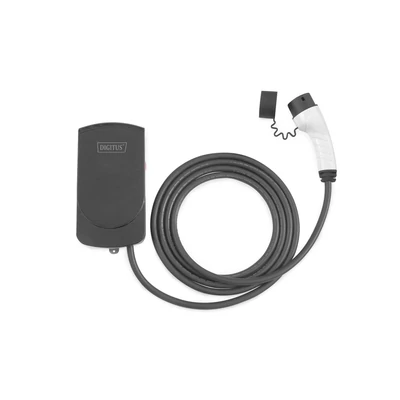

EV fali töltő 3 fázis 11 kW 5 méter DN-3P16-050

​Elektromos autó fali töltő, 3 fázisú, type2 , 11kW , 16A

• Charging standard: DIN EN 61851-1
• Charging power: up to 11 kW
• Rated voltage: 230 V / 400 V / AC / +/- 15%
• Connection phases: 3
• Rated current: 16 A
• Rated frequency: 50 Hz
• Vehicle charging plug: Type 2
• Dimensions: 161 × 310 × 79.8 mm (W/H/D)
• Connection: supply cable 2.5 mm² to 6 mm² - connection screwable via terminal block
• Length charging cable: 5.0 m
• Charging cable type: 5 x 6 mm² + 2 x 0.5 mm²
• Outer jacket: TPU
• Cable color: Black
• Operating temperature: 30℃～+50℃
• Safety protection: RDC Type A + DC 6 mA (integrated)
• Protection class: IP55 (water-jet protected)
• Product approval: CE compliant
• LED status indicator: Operating and charging status
• Device protection: Emergency stop button
