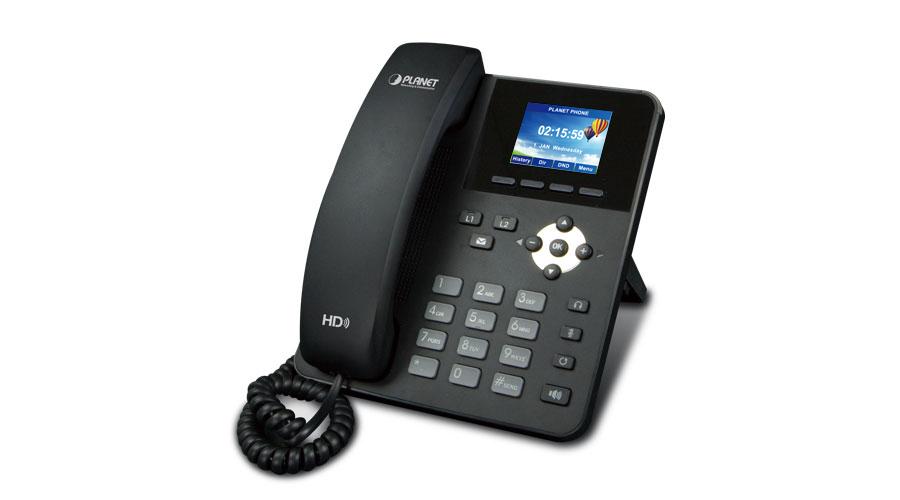

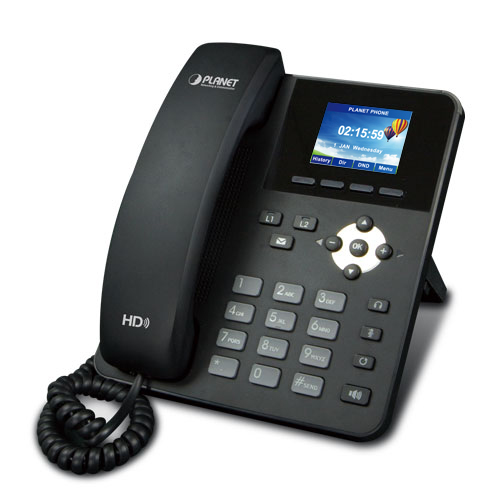

High Definition Color PoE IP Phone

Ár:
19.252 Ft + ÁFA ( 24.450 Ft )
Cikkszám: LVIP-1120PT
Átlagos értékelés: Nem értékelt
A LAN Kft. forgalmazásában:
Hardware
Lines (Direct Numbers) 2 SIP Lines
Physical Interfaces LCD x 1: 2.4-inch (320 x 240) color LCD
Keypad: 32 keys, including
 • 4 soft-keys
 • 12 standard phone digit keys
 • 5 navigation keys
 • 2-line key with tri-color LED
 • 5 function keys
 • 3 volume control keys -- Up, Down, Mute (microphone)
 • 1 hands-free feature

HD hands-free speaker (0 ~ 7KHz) x 1
HD hands-free microphone (0 ~ 7KHz) x 1
HD handset (RJ9) x 1
Protocols and Standard
Protocols
  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • PPPoE
  • 802.1x
  • L2TP (basic unencryption)
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR069
Request for Comments (RFCs) 354, 1321, 1350, 1769, 1889, 1890, 2131, 2132, 2616, 2617, 2661, 2833, 2976, 3261, 3262, 3263, 3264, 3265, 3268, 3311, 3489, 3711, 4346, 4566, 5630, 5865
Networking
Networking
  • Physical: 10/100Mbps Ethernet, dual bridged port for PC bypass
  • IP Configuration: Static, DHCP, PPPoE
  • Network Access Control: 802.1x
  • VPN: L2TP (basic unencryption), OpenVPN
  • VLAN
  • QoS
Deployment & Maintenance
  • Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/OPT66/SIP PNP/TR069
  • Web management portal
  • Web-based packet dump
  • Configuration backup/restore
  • Auto/Manual online software upgrade
  • Syslog
Features
Call Features
  • Call out, answer, reject
  • Mute/unmute (microphone)
  • Call hold, resume
  • Call waiting
  • Intercom
  • Caller ID display
  • Call forwarding (always/busy/no answer)
  • Call transfer (attended/unattended)
  • Call parking, pick-up (depending on server)
  • Redial
  • Do-not-disturb (per line/per phone)
  • Auto-answering (per line)
  • Voice message (on server)
  • Local 3-way conferencing
  • Hot line
Phone Features
  • Phone accessibility control by user PIN
  • Intelligent phonebook (up to 500 entries in total)
  • Remote phonebook (XML/LDAP)
  • Intelligent contact number matching/filtering
  • Call log (300 entries in total, in/out/missed)
  • Voice message waiting indication (VMWI)
  • Network time synchronization
  • Multi-language support in screen and web UI: English, Chinese (Traditional/Simplified), Japanese, Russian, Italian, Turkish, German, Dutch, Spanish, Hebrew, Polish, French, etc.
Audio Features
  • HD voice microphone/speaker (handset/hands-free, 0~7KHz frequency response)
  • Wideband ADC/DAC 16KHz sampling
  • Narrowband codec: G.711a/u, G.723.1, G.726-32K, G.729AB
  • Wideband codec: G.722
  • Full-duplex acoustic echo canceller (AEC) – 96ms tail-length in hands-free mode
  • Voice activity detection (VAD), comfort noise generation (CNG), background noise estimation (BNE), noise reduction (NR)
  • Packet loss concealment (PLC)
  • Dynamic adaptive jitter buffer up to 300ms
  • DTMF: In-band, out-of-band – DTMF-relay (RFC 2833), SIP info
Environment
Power Requirements IEEE 802.3af Power over Ethernet
5V 600mA
Operating Temperature 0 ~ 40 degrees C
Operating Humidity 10 ~ 65% (non-condensing)
Weight 620g
Dimensions (W x D x H) 196 x 164 x 60 mm
Emission CE, FCC, RoHS
Connectors RJ9 phone jacket x 2:
  • Handset x 1
  • Headphone x 1

RJ45 Ethernet jacket x 2:
  • Network x 1 (802.3af PoE Class 1 enabled)
  • PC x 1 (Bridged Network)
Elérhetőség: Előrendelhető
Szállítási díj: 2.908 Ft
Menny.:db
