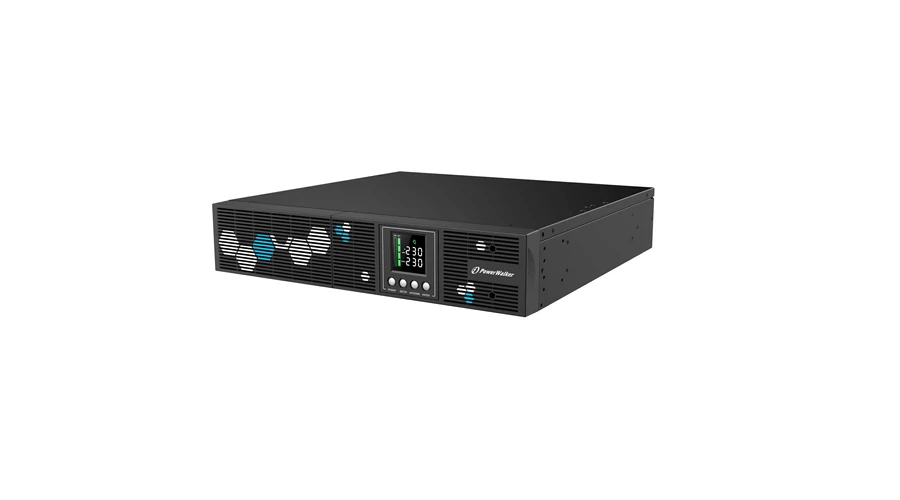

VI 2000 RLP 10121192

Katt rá a felnagyításhoz

További képek

Ár:

159.111 Ft + ÁFA ( 202.071 Ft )

Cikkszám:	PW-VI2000RLP
Átlagos értékelés:	Nem értékelt
A LAN Kft. forgalmazásában: UPS with real programmable outlets! Remote, Reboot, Schedule, and Individual switching of the Outlets! Remote IP-Response Checking Low Own Power Consumption in Normal Mode – Energy Saving Function Automatic Voltage Regulator with Pure Sine Wave output USB with Human Interface Device (HID) support It includes an Intelligent Slot for communication cards Rotatable LCD & Selectable Charging Current Back-up Times can be extended with Battery Packs! Cable Management Tray for your cable retention (optional accessory)
Elérhetőség:	Előrendelhető
Szállítási díj:	2.908 Ft
Kívánságlistára teszem

Leírás

A LAN Kft. forgalmazásában:

GENERAL FEATURES
Type	Line-Interactive (VI)
Phases (IN-OUT)	1-1

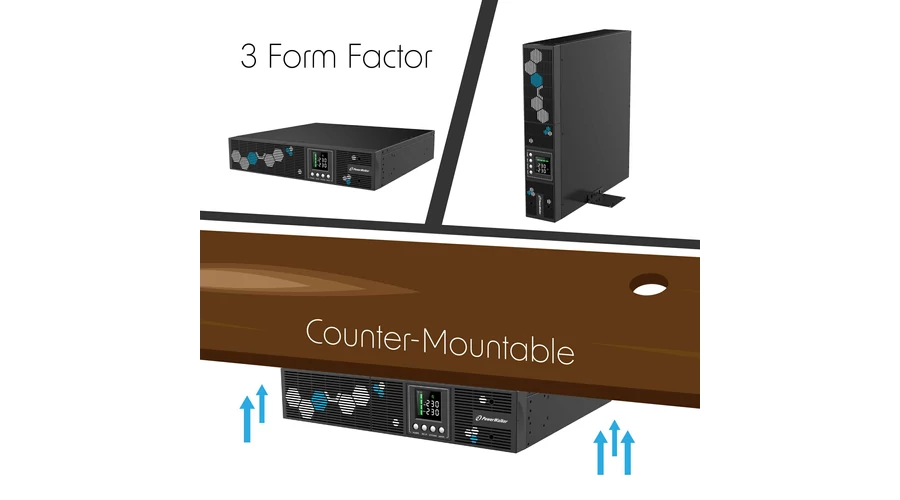

Form Factor	Rack, Counter-Mountable, Tower
Rack Units [U]	2U
Power Capacity	2000VA / 1800W
Output Power Factor	0.90
INPUT
Input Voltage Range	165-290 VAC
Frequency Range	45Hz – 65Hz
OUTPUT
Waveform	Pure Sine Wave
Nominal Output Voltage	230 VAC
THDv	≤3% @ 100% linear load, ≤5% @ 100% non-linear load
Voltage Regulation (Battery Mode)	±10%
Frequency (Battery Mode)	±1%

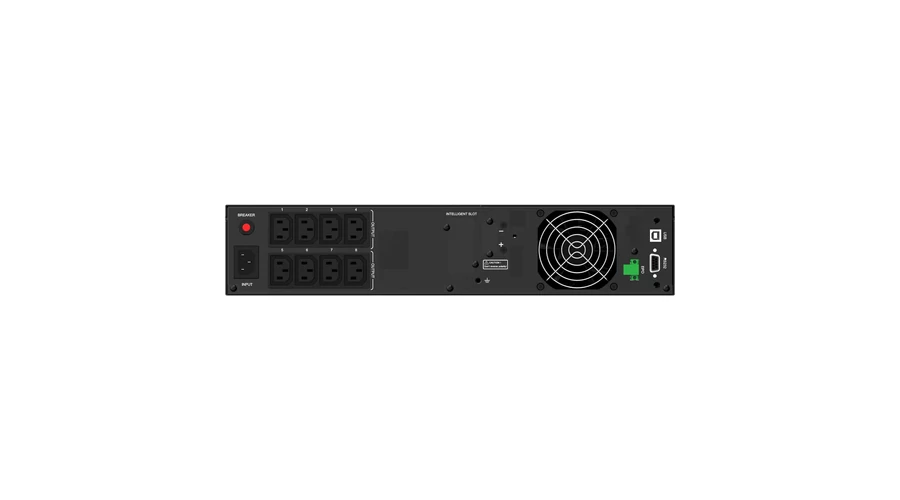

INPUT & OUTPUT CONNECTORS
Input Connector	C14
Output Type	IEC
IEC C13	8
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)	98.8
Battery Mode Efficiency [%] (Full Load)	83.4
Transfer Time (AC / Line Mode to Battery Mode) [ms]	2-6ms typical (10ms max)
Additional Features	LCD Display, Generator Compatible, EPO – Emergency Power Off, HID – Human Interface Device, AVR – Automatic Voltage Regulator, Battery Pack Available, Cold-Start Function, Circuit Breaker Reset, Potential Equalization Screw, Programmable Segment Available, Overload Recovery, Off-Mode Charging, Self-Test, Cable Retention (Optional), Energy Saving Function
IEC 62040-3 classification	VI-SS-211
BATTERIES AND AUTONOMY
Batteries	4x 12.0V/9.0Ah
DC Voltage	4x 12.0V
Recharge Time	4h to 90%
Full Load Backup Time [min]	2.0
Half Load Backup Time [min]	9.0
Charger	1 – 6A [1A]
COMMUNICATION
Communication	USB Type B – for Monitoring Software, RS-232, Management Card Slot
Software	PowerMaster
ENVIRONMENT
Noise Level	< 40dB
Fan Logic	Fan Off: Line Mode Fan On: Battery Mode, AVR ON, Battery Charging
Temperature	0°C – 40°C
Humidity	5% – 90% RH (non-condensing)
IP	IP 20
LOGISTICS
Manual Languages	DE, PL, FR, ES, EN
EAN	4260074983791
Product Dimensions (DxWxH) [mm]	430 x 438 x 88 mm
Product Weight [kg]	24.8
Package Dimensions (DxWxH) [mm]	550 x 556 x 231 mm
Package Weight [kg]	27.0
