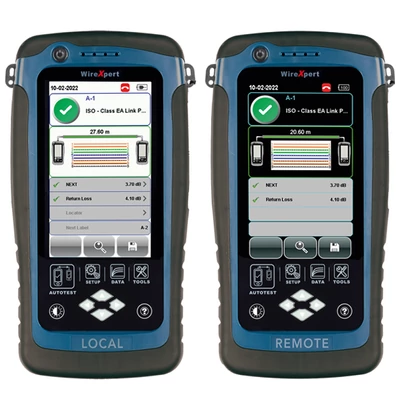

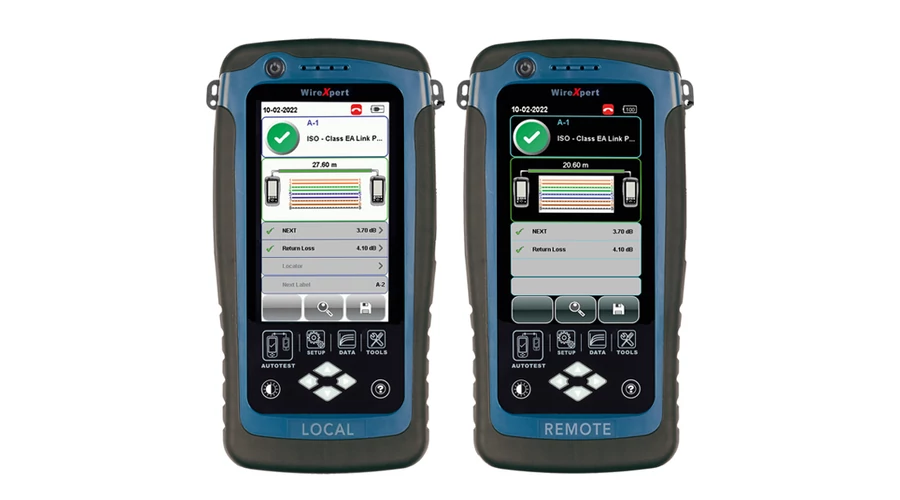

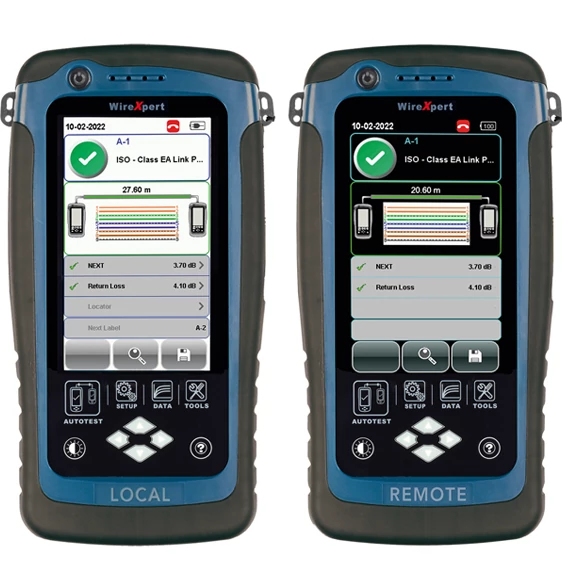

WX-500-PLUS cable certifier

A LAN Kft. forgalmazásában:

Parameter Specification

• COPPER TESTING Certification testing TIA 568-C.2 CAT 5e, 6, 6A ISO/IEC 11801, EN 50173 Class D, E, EA Patch-cord CAT 5e, 6, 6A testing
• Max cable length for dual-ended Autotest 500 m
• Insertion cycles Channel: 10,000 typical Permanent link: 5,000 typical
• TEST PARAMETERS As specified in TIA 1152, IEC 61935-1
• Wiremap Loop Resistance 0 to 40 Ω, ±0.1 Ω
• Length 0 to 500 m, ±0.5 m (dual-ended testing)
• Propagation Delay and Delay Skew 0 to 5000 ns, ±1 ns
• Attenuation 0 to 70 dB, ±0.1 dB
• Pair-to-Pair and Power-Sum NEXT 0 to 85 dB, ±0.2 dB
• Pair-to-Pair and Power-Sum ACRF 0 to 85 dB, ±0.2 dB
• Return Loss 0 to 40 dB, ±0.2 dB
• ACRN, PSACRN 0 to 85 dB, ±0.5 dB
• Advanced diagnostics Time-domain fault Locator for RL and NEXT
• Measurement accuracy Exceeds TIA 1152 Level IIIe, IEC 61935 Level IIIe
• Measurement frequency range 1-500 MHz

FIBER TESTING - SM

• Wavelengths 1,310 nm-1,550 nm
• Connector type SC, LC (optional adapter needed)
• Test standard TIA 568 C.3, IEC 14763-3
• TEST PARAMETERS
• Loss 0 to 31 dB, ±0.2 dB
• Length 0 to 20,000 m, ±1.5 m
• Output power -5 dBm to -9 dBm
• Receiver sensitivity -40 dBm

FIBER TESTING - MM/MMEF

• Wavelengths 850 nm-1,300 nm
• Connector type SC/FC-SC
• Test standard TIA 568 C.3, IEC 14763-3
• TEST PARAMETERS
• Loss 0 to 24 dB, ±0.2 dB
• Length 0 to 2,000 m, ±1.5 m Dynamic range 24 dB/12 dB
• Output power -4 dBm to -10 dBm / -16 dBm to -20 dBm
• Receiver sensitivity -34 dBm / -40 dBm
• Encircled-Flux (EF) compliance IEC 61280-4-1 (MMEF)
• VFL wavelength 650 µm (MMEF)
• Power 0 dBm (MMEF)

GENERAL SPECIFICATIONS

• Interfaces Probe Interface, RJ-45 Ethernet, USB host and device, talk set, power jack
• Display 6" industrial LCD, touch sensitive area on both units
• Enclosure Ruggedized plastic with rubber over-mold, withstands 1.5 m drop test on hard surface
• Remote unit abilities View test results, save tests, start autotest
• Power supply AC 100-240 V to 12 V, 3A power adapter
• Input over-voltage protection Protected against Telco voltages
• Battery Removable and rechargeable Li-Ion
• Battery capacity >8 hours continuous operation
• Internal storage capacity >6,000 copper test results with full plot information for CAT 6A
• External storage USB Flash Drive
• Dimensions 223 X 124 X 70 mm (including a 6ACH adaptor)
• Weight 1 kg
• Supported languages TW, CS, EN, FI, FR, DE, IT, JA, KO, PL, PT, RU, ES, SV, TR
• Calibration period 1 year

ENVIRONMENTAL

• Operating temperature 0 to 40 °C
• Storage temperature -20 to 60 °C
• Relative humidity 10% to 80%

MINIMUM SYSTEM REQUIREMENTS FOR REPORTING SOFTWARE

• Microsoft Windows Vista/7/8/10, 32 or 64 bits
• Intel Core 2 Duo, 2 GHz
• 200 MB of free disk space
• 1 GB RAM Microsoft.NET Framework 4.0
