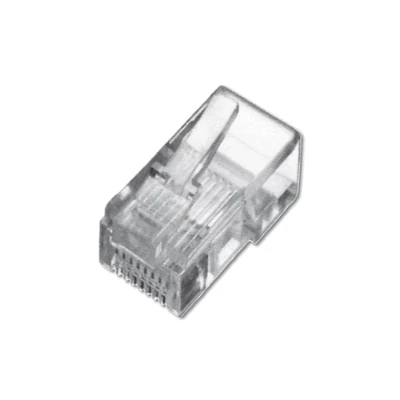

8P8C mod.dugasz Cat5e A-MO 8/8 SR

A LAN Kft. forgalmazásában:

• Layout performance: CAT 5e, 10/100Base-T, 1GBase-T
• Area of application: Patch cable assembly
• Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
• General properties:
• UL certified
• Technical properties:
• Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
• Material connector body: Polycarbonat, clear
• Connector contact: Phosphor bronze, brass 0.6 μ gold-plated
• Flammability: UL 94V-2
• Physical properties:
• Insertion force: ≤ 30 N
• Diameter Cu-Conductor: AWG (27/7 ... 24/7)
• Operating temperature: -40 °C to +80 °C
• Current carrying capacity: 1A -1.5A at 50 °C
