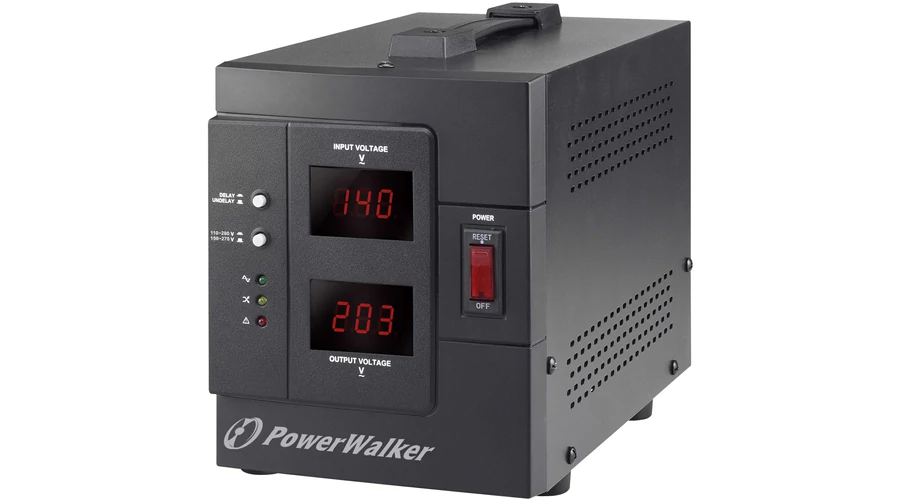

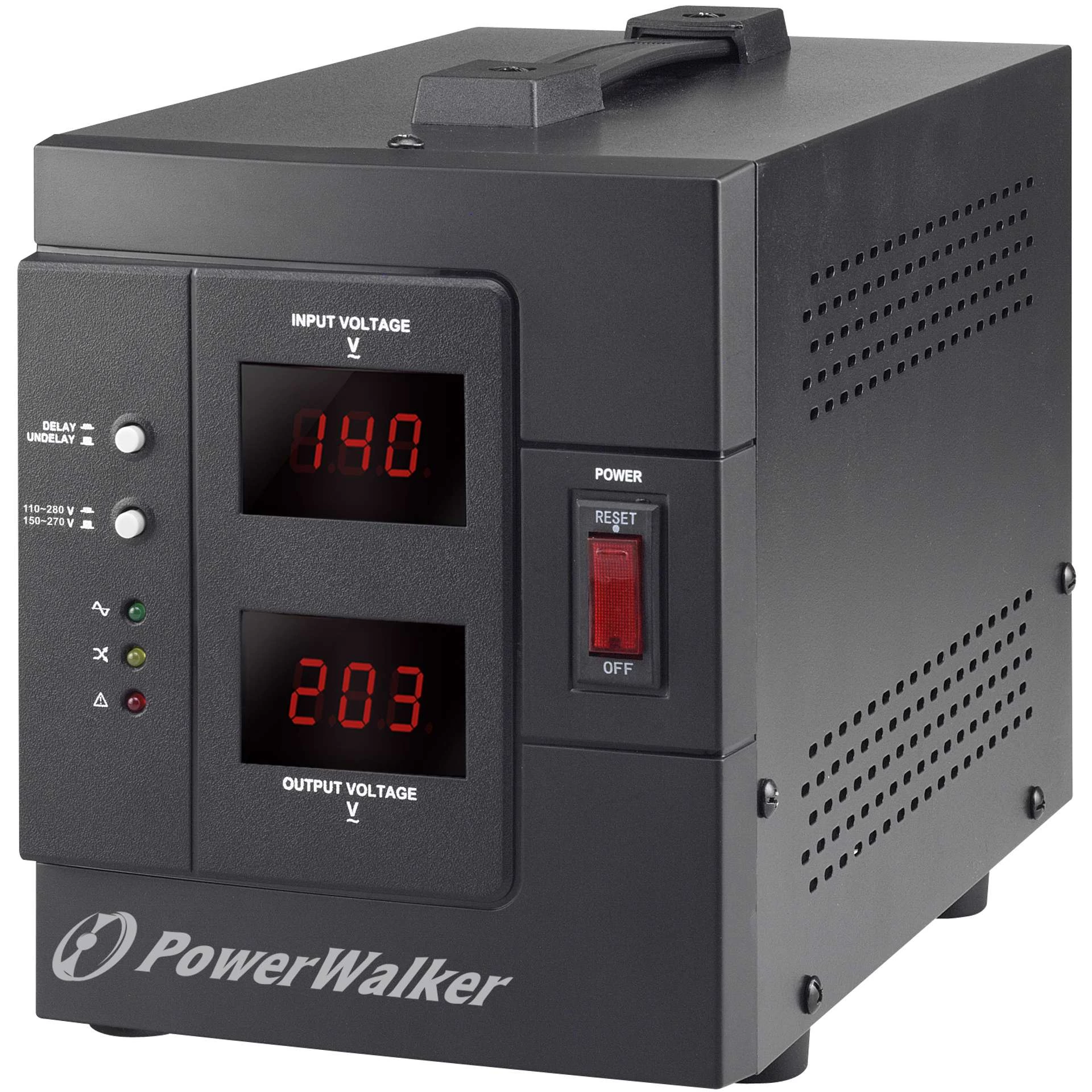

Automatic Voltage Reductor 1500VA/1200W AVR 1500 SIV 10120305

Cikkszám:	PW-AVR1500SIV
Átlagos értékelés:	Nem értékelt
A LAN Kft. forgalmazásában: Selectable input voltage range for home appliances and personal computers Time Delay function eliminates transients that can affect connected equipment Microprocessor Control guarantees high reliability The PowerWalker AVR SIV series are automatic voltage regulators with selectable input voltage 150-270VAC or wide 110-280VAC. It provides output voltage within allowed limit of +/-10% (207-253VAC) through boost and buck stabilizers. The built-in thermal sensor provides over-temperature protection and recover, while abnormal situation is eliminated. The device works in following modes depending on input voltage: Input 252-270/280V – buck mode -10% in regards to input voltage Input 207-252VAC – normal operation Input 173-211VAC – first boost +20% Input 110/150-178VAC – second boost +40% Input <110VAC in wide range or <150VAC in normal mode – AVR off. Additionally you can turn on protection delay function which will increase protection reaction time from 10s to 3 minutes for less sensitive devices.
Elérhetőség:	Előrendelhető
Szállítási díj:	991 Ft
Kívánságlistára teszem

A LAN Kft. forgalmazásában:

GENERAL FEATURES
Type	AVR
Phases (IN-OUT)	1-1
Form Factor	Tower
Power Capacity	1500VA / 1200W
Output Power Factor	0.80
INPUT
Input Voltage Range	110-280 VAC or 150-270 VAC
Frequency Range	50Hz or 60Hz (self-adaptive)
OUTPUT
Waveform	Simulated Sine Wave
Nominal Output Voltage	230 VAC ±10%
INPUT & OUTPUT CONNECTORS
Input Connector	CEE 7/7
Output Type	Type F
Type F (CEE 7/3)	2
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)	95.0
Additional Features	AVR – Automatic Voltage Regulator
COMMUNICATION
Communication	N/A
Software	N/A
ENVIRONMENT
Noise Level	< 30dB
Fan Logic	No fan
Temperature	0°C – 40°C
Humidity	0% – 90% RH (non-condensing)
IP	IP 20
LOGISTICS
Package Content	Manual, Product
Manual Languages	DE, PL, EN
EAN	4260074976793
Product Dimensions (DxWxH) [mm]	234 x 134 x 181 mm
Product Weight [kg]	5.4
Package Dimensions (DxWxH) [mm]	309 x 192 x 242 mm
Package Weight [kg]	6.0
Outer Carton Dimensions (DxWxH)	272 x 601 x 329 mm
Pcs. per Outer Carton	3
Pcs. per Layer	12
Pcs. per Pallet	84
Pcs. per Pallet [Oversized]	84
