| GENERAL FEATURES | |
| Type | Inverter |
| Phases (IN-OUT) | 1-1 |
| Form Factor | Tower |
| Power Capacity | 700VA / 500W |
| Output Power Factor | 0.71 |
| INPUT | |
| Input Voltage Range | 170-280 VAC (Narrow Range); 90-280 VAC (Wide Range) |
| Frequency Range | 50Hz or 60Hz (self-adaptive) |
| OUTPUT | |
| Waveform | Pure Sine Wave |
| Nominal Output Voltage | 230 VAC |
| Voltage Regulation (Battery Mode) | ±5% |

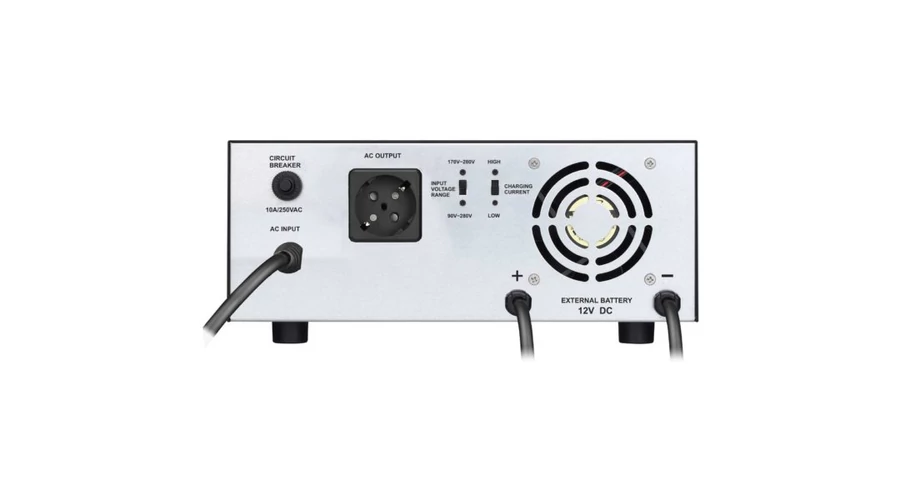

| INPUT & OUTPUT CONNECTORS | |
| Input Connector | CEE 7/7 |
| Output Type | Type F |
| Type F (CEE 7/3) | 1 |
| TECHNICAL DETAILS | |
| LINE Mode Efficiency [%] (Full Load) | 88.0 |
| Transfer Time (AC / Line Mode to Battery Mode) [ms] | 10ms Normal Range (20ms Wide Range) |
| Additional Features | Circuit Breaker Reset |
| BATTERIES AND AUTONOMY | |
| Batteries | Batteries are not Included |
| DC Voltage | 1x 12.0V |
| Additional Batteries Information | Designed to work with External Batteries |
| Charger | 10A or 15A (selectable), Recommended Battery Capacity 100 – 150 Ah, DC Voltage 12V, Floating Charge Voltage 13.5V, Low Battery Alarm Voltage 11.5V, Shutdown Voltage 10.5V, Overcharge Protection 15V |
| External Battery Pack | Yes |
| COMMUNICATION | |
| Communication | N/A |
| Software | N/A |
| ENVIRONMENT | |
| Noise Level | < 45dB |
| Fan Logic | Fan ON: Charging Mode |
| Temperature | 0°C – 50°C |
| Humidity | 0% – 90% RH (non-condensing) |
| IP | IP 20 |
| LOGISTICS | |
| Package Content | Manual, Product |
| Manual Languages | EN |
| EAN | 4260074977226 |
| Product Dimensions (DxWxH) [mm] | 290 x 289 x 127 mm |
| Product Weight [kg] | 4.5 |
| Package Dimensions (DxWxH) [mm] | 375 x 405 x 220 mm |
| Package Weight [kg] | 4.7 |
| Pcs. per Outer Carton | 1 |
| Pcs. per Layer | 6 |
| Pcs. per Pallet | 54 |
| Pcs. per Pallet [Oversized] | 54 |
