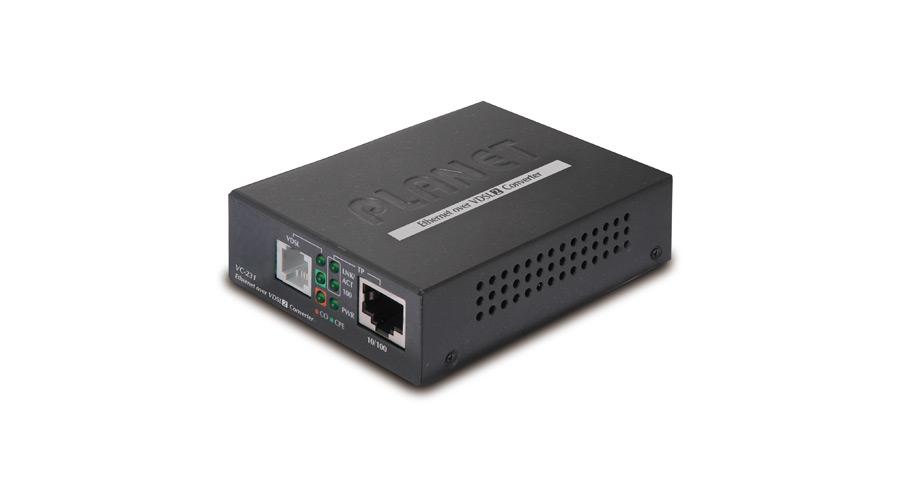

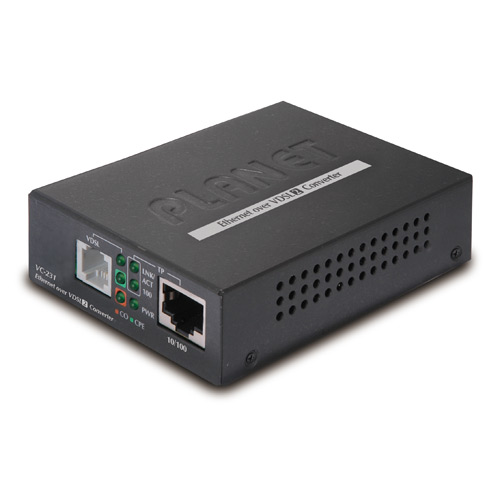

Planet VC-231 100/100 Mbps Ethernet VDSL2 converter

Cikkszám:

LVC-231

Átlagos értékelés:

A LAN Kft. forgalmazásában:

Hardware Specifications
Ports	10/100Base-TX：　1 RJ-45, Auto-Negotiation and Auto-MDI/MDI-X VDSL：　1 RJ-11, female Phone Jack PHONE：　Additional Splitter for POST connection
DIP Switch & Functionality	• 4 position DIP switch • CO / CPE mode select • Selectable fast and interleaved mode • Selectable target 17a / 30a profiles • Selectable target SNR mode
Encoding	• VDSL-DMT 　- ITU-T G.993.1 VDSL 　- ITU-T G.997.1 　- ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)
LED Indicators	• One Power • 3 for RJ-11/VDSL2 • 2 for per RJ-45 10/100Base-TX port
Cabling	• Ethernet 　　10Base-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft) 　　100Base-TX: 2-pair UTP Cat.5, up to 100m (328ft) • VDSL 　　Twisted-pair telephone wires (AWG24 or better) up to 1.4km
Performance* (Downstream / Upstream)	• 17a profile 　300m -> 86/65Mbps 　400m -> 86/52Mbps 　600m -> 81/36Mbps 　800m -> 72/19Mbps 　1000m -> 60/9Mbps 　1200m -> 59/6Mbps 　1400m -> 50/2Mbps • 30a profile 　300m -> 100/100Mbps 　400m -> 90/90Mbps 　600m -> 61/40Mbps 　800m -> 54/8Mbps
Power Requirements	5V DC, 2A
Power Consumption	6.6 Watts / 22 BTU
Dimensions (W x D x H)	97 x 70 x 26 mm
Weight	199g
Environment
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 10 ~ 90% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 10 ~ 90% (non-condensing)
Switch Specifications
Switch Processing Scheme	Store-and-Forward
Address Table	1K entries
Flow Control	Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex
Switch fabric	0.2Gbps
Throughput (packet per second)	0.14Mpps
Network cables	10/100Base-TX: 2-Pair UTP Cat. 3,4, 5 (100meters, max.) EIA / TIA-568 100-ohm STP (100meters, max.)
Standard Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX ITU-T 　- G.993.1 (VDSL) 　- G.997.1 　- G.993.2 VDSL2 (Profile 17a/30a)
