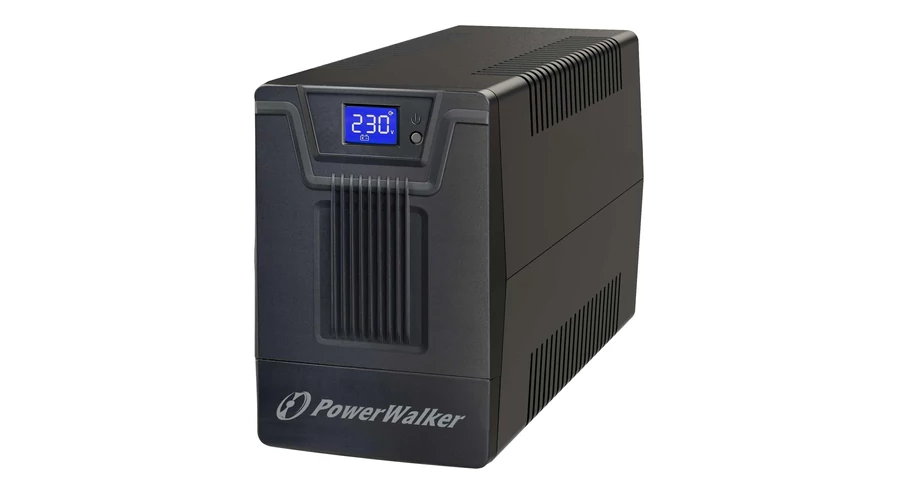

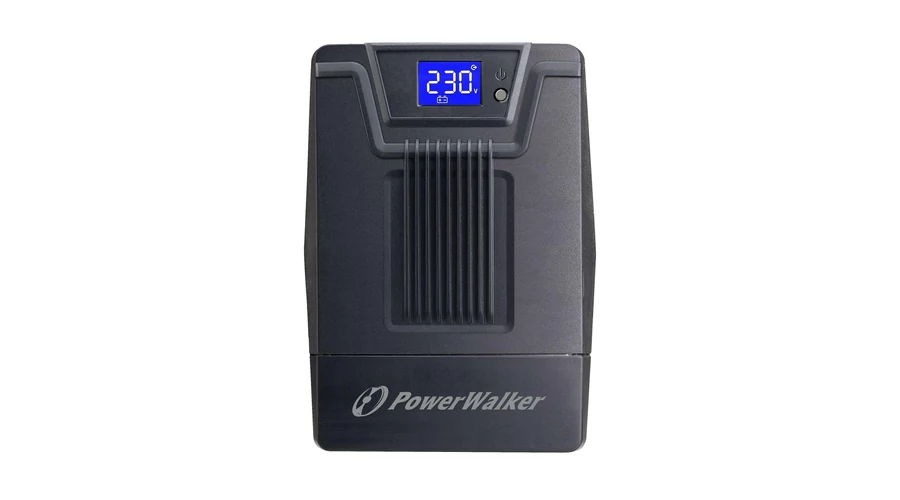

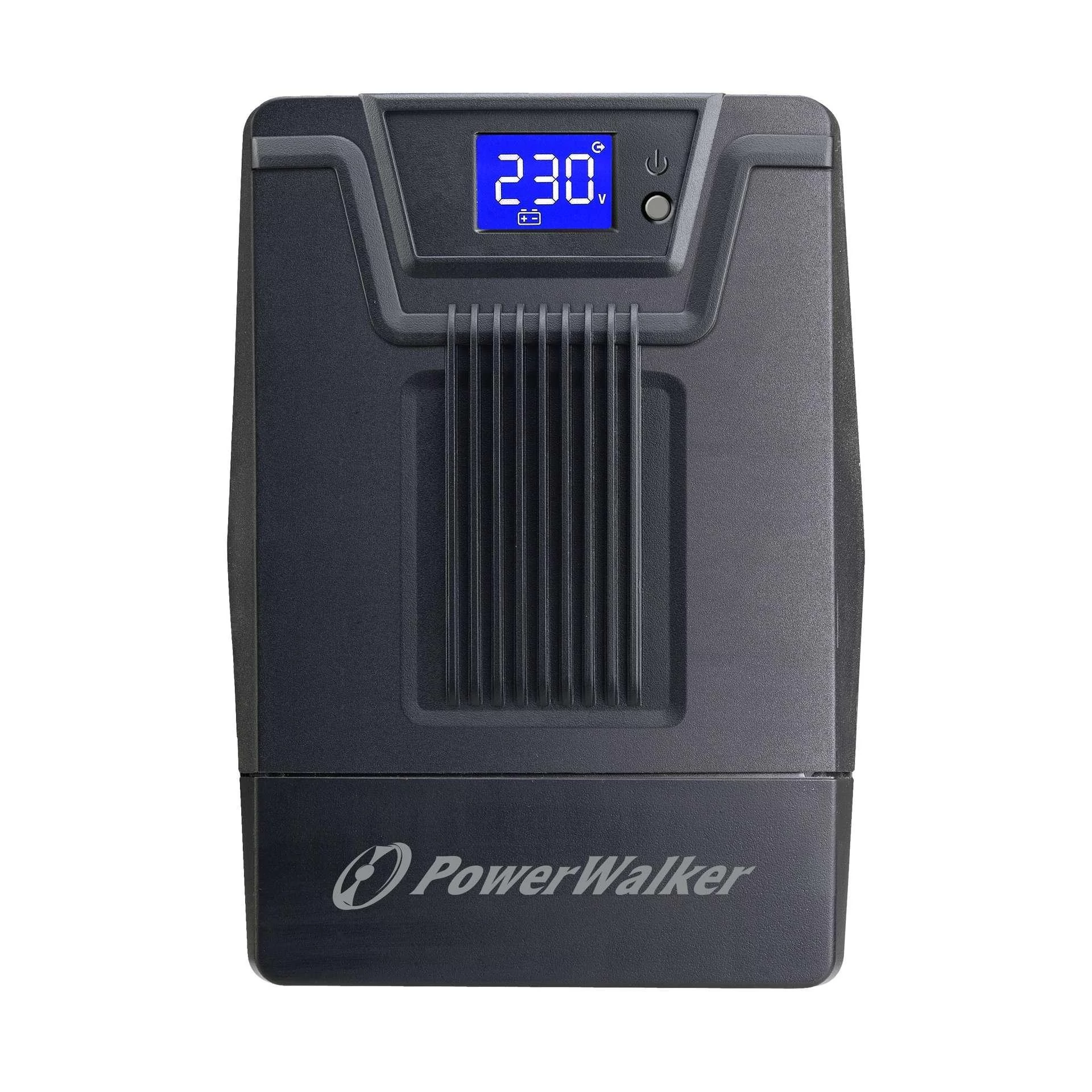

1000 VI SCL line interactive UPS LCD 10121141
További képek
| Cikkszám: | PW-VI1000SCL |
| Átlagos értékelés: | Nem értékelt |
A LAN Kft. forgalmazásában:
The PowerWalker VI SCL (Line-Interactive) series offers a simple yet effective solution for PCs and other home applications. It is available with different outlets and features a microprocessor-controlled automatic voltage regulator, which stabilizes voltage within a safe limit by switching to boost and buck modes. The series offers a convenient touch panel which allows to scroll through most useful monitored parameters. All UPSs in this series can be turned on directly from battery (cold-start function) and internal batteries can be charged in standby mode. This model comes with a USB port with HID support and can be monitored and controlled using the PowerWalker ViewPower software (available for download from our website) or directly using O/S native drivers thanks to HID. |
|
| Elérhetőség: | Előrendelhető |
| Szállítási díj: | 991 Ft |
|
|
|
Leírás
A LAN Kft. forgalmazásában:
| GENERAL FEATURES | |
| Type | Line-Interactive (VI) |
| Phases (IN-OUT) | 1-1 |
| Form Factor | Tower |
| Power Capacity | 1000VA / 600W |
| Output Power Factor | 0.60 |
| INPUT | |
| Input Voltage Range | 162-290 VAC |
| Frequency Range | 50Hz or 60Hz (self-adaptive) |
| OUTPUT | |
| Waveform | Simulated Sine Wave |
| Nominal Output Voltage | 230 VAC |
| Voltage Regulation (Battery Mode) | ±10% |
| Frequency (Battery Mode) | ±1Hz |
| INPUT & OUTPUT CONNECTORS | |
| Input Connector | CEE 7/7 |
| Output Type | Type F |
| Type F (CEE 7/3) | 4 |
| TECHNICAL DETAILS | |
| LINE Mode Efficiency [%] (Full Load) | 94.0 |
| Battery Mode Efficiency [%] (Full Load) | 60.0 |
| Transfer Time (AC / Line Mode to Battery Mode) [ms] | 2-6ms |
| Data Line Protection | RJ-11 Port, RJ-45 Port (100mbit) |
| Additional Features | Circuit Breaker Reset, HID – Human Interface Device, AVR – Automatic Voltage Regulator |
| IEC 62040-3 classification | VI-SY-333 |
| BATTERIES AND AUTONOMY | |
| Batteries | 2x 12.0V/7.0Ah |
| DC Voltage | 2x 12.0V |
| Recharge Time | 4-6h to 90% |
| Full Load Backup Time [min] | 0.5 |
| Half Load Backup Time [min] | 5.0 |
| Charger | 1A |
| COMMUNICATION | |
| Communication | USB Type B – for Monitoring Software |
| Software | ViewPower |
| ENVIRONMENT | |
| Noise Level | < 30dB |
| Fan Logic |
No Fan |
| Temperature | 0°C – 40°C |
| Humidity | 0% – 90% RH (non-condensing) |
| IP | IP 20 |
| LOGISTICS | |
| Package Content | Manual, UPS |
| Manual Languages | DE, IT, RU, PL, FR, ES, PT, EN |
| EAN | 4260074982138 |
| Product Dimensions (DxWxH) [mm] | 320 x 130 x 182 mm |
| Product Weight [kg] | 8.2 |
| Package Dimensions (DxWxH) [mm] | 390 x 192 x 275 mm |
| Package Weight [kg] | 9.0 |
| Pcs. per Outer Carton | 1 |
| Pcs. per Layer | 15 |
| Pcs. per Pallet | 105 |
Csatolt dokumentumok
Paraméterek
| kialakítás szerint | álló / tower |
| színusz kimenet | Szimulált színusz |
