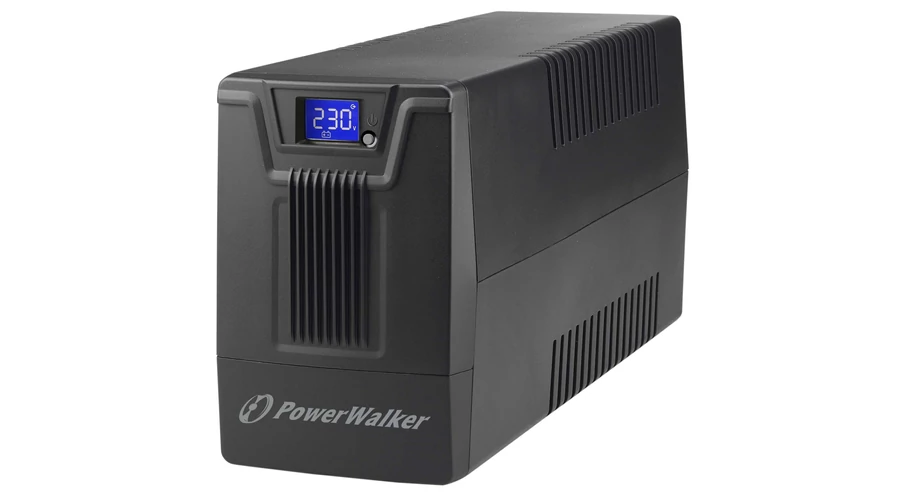

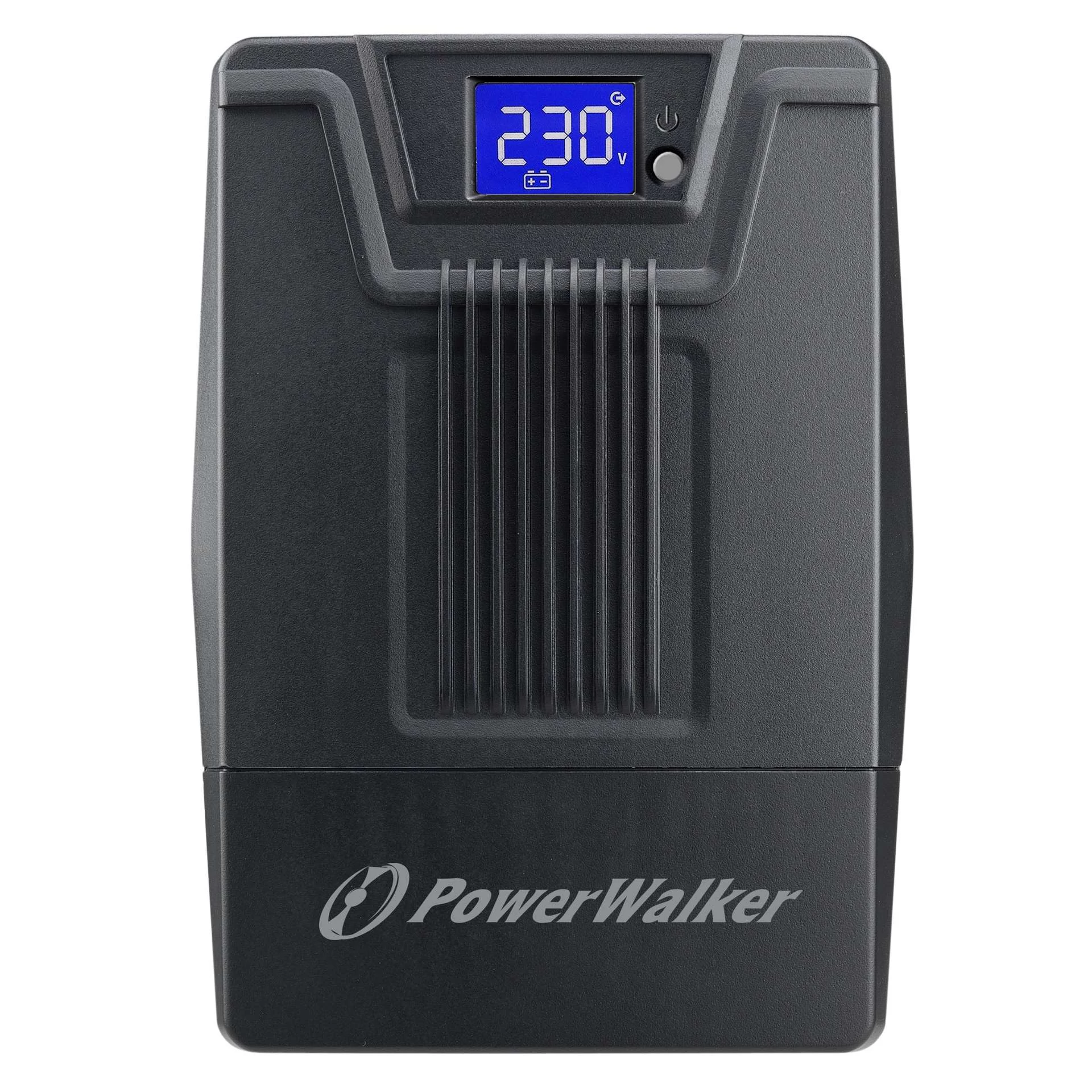

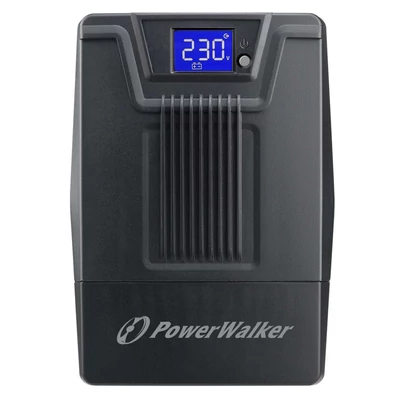

600 VI SCL line interactive UPS LCD 10121139
| Cikkszám: | PW-VI600SCL |
| Átlagos értékelés: | Nem értékelt |
A LAN Kft. forgalmazásában:
The PowerWalker VI SCL (Line-Interactive) series offers a simple yet effective solution for PCs and other home applications. It is available with different outlets and features a microprocessor-controlled automatic voltage regulator, which stabilizes voltage within a safe limit by switching to boost and buck modes. The series offers a convenient touch panel which allows to scroll through most useful monitored parameters. All UPSs in this series can be turned on directly from battery (cold-start function) and internal batteries can be charged in standby mode. This model comes with a USB port with HID support and can be monitored and controlled using the PowerWalker ViewPower software (available for download from our website) or directly using O/S native drivers thanks to HID. |
|
| Elérhetőség: | Előrendelhető |
| Szállítási díj: | 991 Ft |
|
|
|
Leírás
A LAN Kft. forgalmazásában:
GENERAL FEATURES
Type
Line-Interactive (VI)
Phases (IN-OUT)
1-1
Form Factor
Tower
Power Capacity
600VA / 360W
Output Power Factor
0.60
INPUT
Input Voltage Range
162-290 VAC
Frequency Range
50Hz or 60Hz (self-adaptive)
OUTPUT
Waveform
Simulated Sine Wave
Nominal Output Voltage
230 VAC
Voltage Regulation (Battery Mode)
±10%
Frequency (Battery Mode)
±1Hz

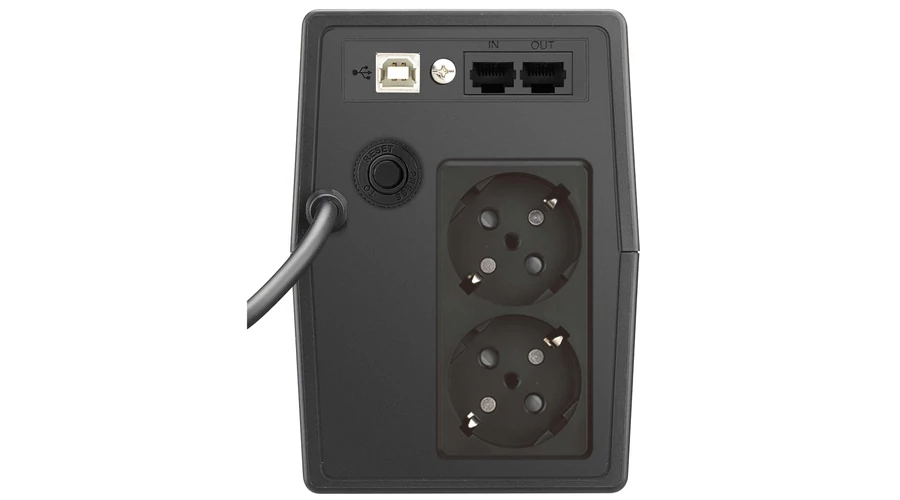

INPUT & OUTPUT CONNECTORS
Input Connector
CEE 7/7
Output Type
Type F
Type F (CEE 7/3)
2
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)
94.0
Battery Mode Efficiency [%] (Full Load)
60.0
Transfer Time (AC / Line Mode to Battery Mode) [ms]
2-6ms
Data Line Protection
RJ-11 Port, RJ-45 Port (100mbit)
Additional Features
Circuit Breaker Reset, HID – Human Interface Device, AVR – Automatic Voltage Regulator
IEC 62040-3 classification
VI-SY-333
BATTERIES AND AUTONOMY
Batteries
1x 12.0V/7.0Ah
DC Voltage
1x 12.0V
Recharge Time
4h to 90%
Full Load Backup Time [min]
0.0
Half Load Backup Time [min]
5.5
Charger
1A
COMMUNICATION
Communication
USB Type B – for Monitoring Software
Software
ViewPower
ENVIRONMENT
Noise Level
< 30dB
Fan Logic
No fan
Temperature
0°C – 40°C
Humidity
0% – 90% RH (non-condensing)
IP
IP 20
LOGISTICS
Package Content
Manual, UPS
Manual Languages
DE, IT, RU, PL, FR, ES, PT, EN
EAN
4260074982114
Product Dimensions (DxWxH) [mm]
300 x 101 x 142 mm
Product Weight [kg]
4.4
Package Dimensions (DxWxH) [mm]
344 x 140 x 220 mm
Package Weight [kg]
5.6
Pcs. per Outer Carton
4
Pcs. per Layer
20
Pcs. per Pallet
160
