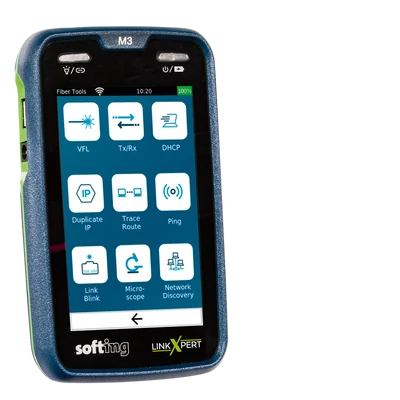

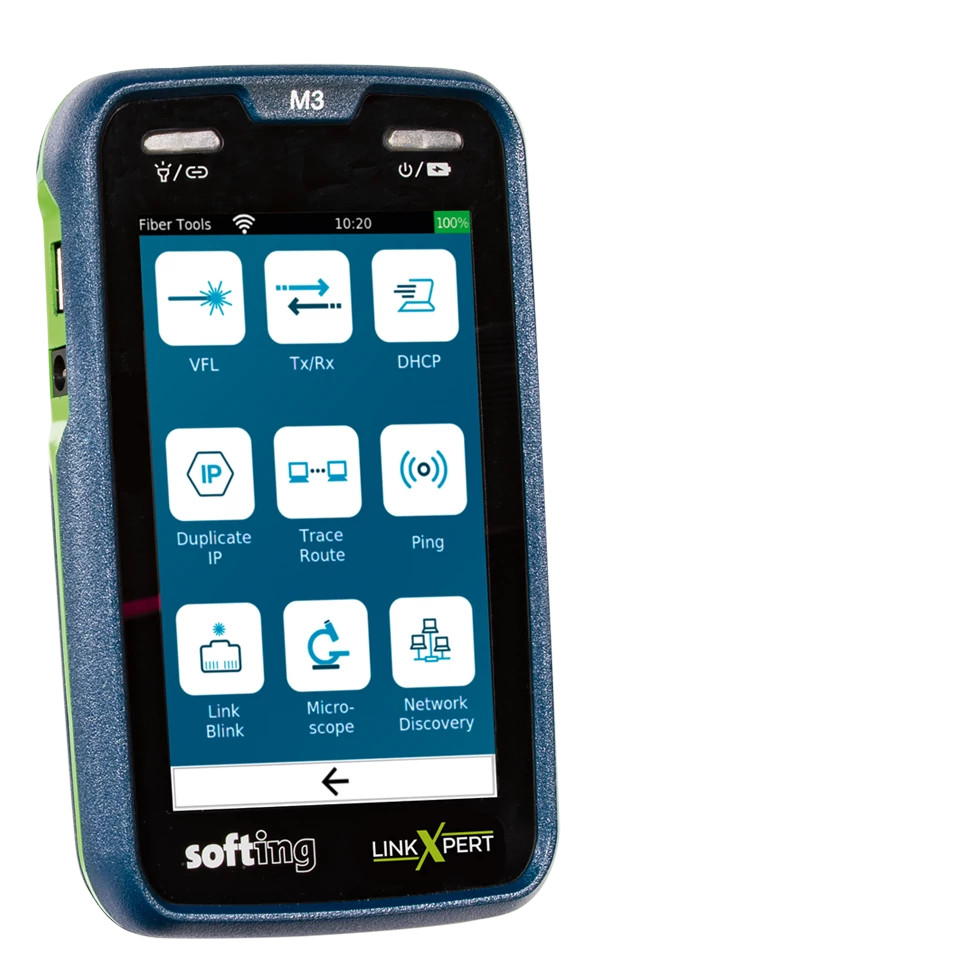

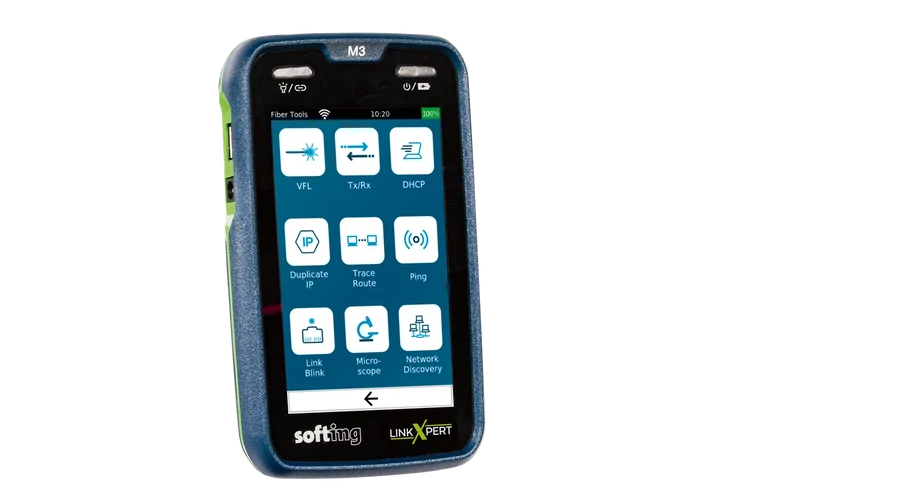

LinkXpert M3 teszter

A LAN Kft. forgalmazásában:

TECHNICAL SPECIFICATIONS

• Copper cable and network tests Wiremap, length, tone generator, PoE++ load test, Link Speed, Link Light Blink, DHCP, DNS, ping, traceroute, network discovery, duplicate address scanner, LLDP, CDP, VLAN, 802.1x security, MAC spoofing
• Fiber cable and network tests Red light laser, SFP transmit and receive power levels, Link Speed, Link Light Blink, DHCP, DNS, ping, traceroute, network discovery, duplicate address scanner, LLDP, CDP, VLAN, 802.1x security, MAC spoofing
• Wireless LAN network tests Access point scanner, Link Speed, Link Light Blink, DHCP, DNS, ping, traceroute, network discovery, duplicate address scanner, LLDP, CDP, VLAN, 802.1x security, MAC spoofing
• Screen 5 1/4" TFT touch screen
• Dimensions 160x93x33mm
• Weight 400g (incl. internal battery)
• Rechargeable Battery 7.2V Li-Ion 3.12Ah , internal, not user changeable
• Battery life up to 8 hrs for Wiremap test
• Power supply (device) 12VDC, 2.5A, round connector, center plus
• External power supply AC 100-240V / DC 12V, 3A , EURO, UK and US connector
• Voltage protection 60V DC, 55V AC
• Operating temperature -10 to 50°C
• Storage temperature -20 to 60°C
• Humidity 10% to 80%, non-condensing
• Copper cabling • Twister pair, RJ45 connector • Coax, F connector (with optional accessory) • Adapter cables for more connectors like M12 D, M12 X, IX available as accessory
• Ethernet 10Mb/s, 100Mb/s, 1000Mb/s, 10Gb/s (only recognition at copper cables)
• PoE IEEE 802.3af, IEEE 802.3at up to class 8, 90W
• Tone generator Integrated, configurable for twisted pair and coax cabling
• Flashlight Integrated, white LED
• Fiber optic cabling via SFP modul, multimode and singlemode, LC connector
• Fiber optic microscope IEC 61300-3-35
• Red light source 625nm, class I, <1mW
• SFP Bay Multimode and singlemode modules up to 1Gb/s
• Wi-Fi IEEE 802.11.ac (with external USB stick)
