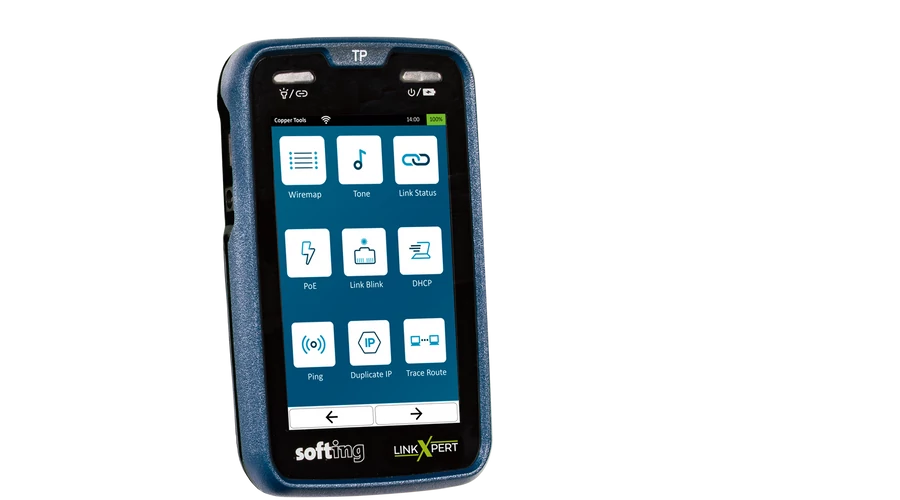

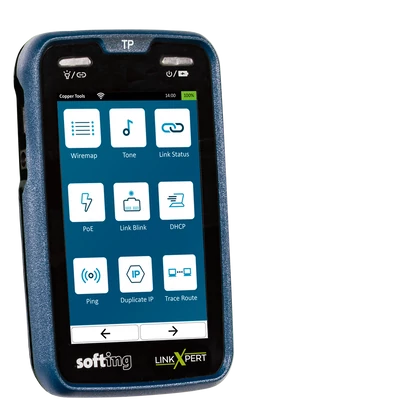

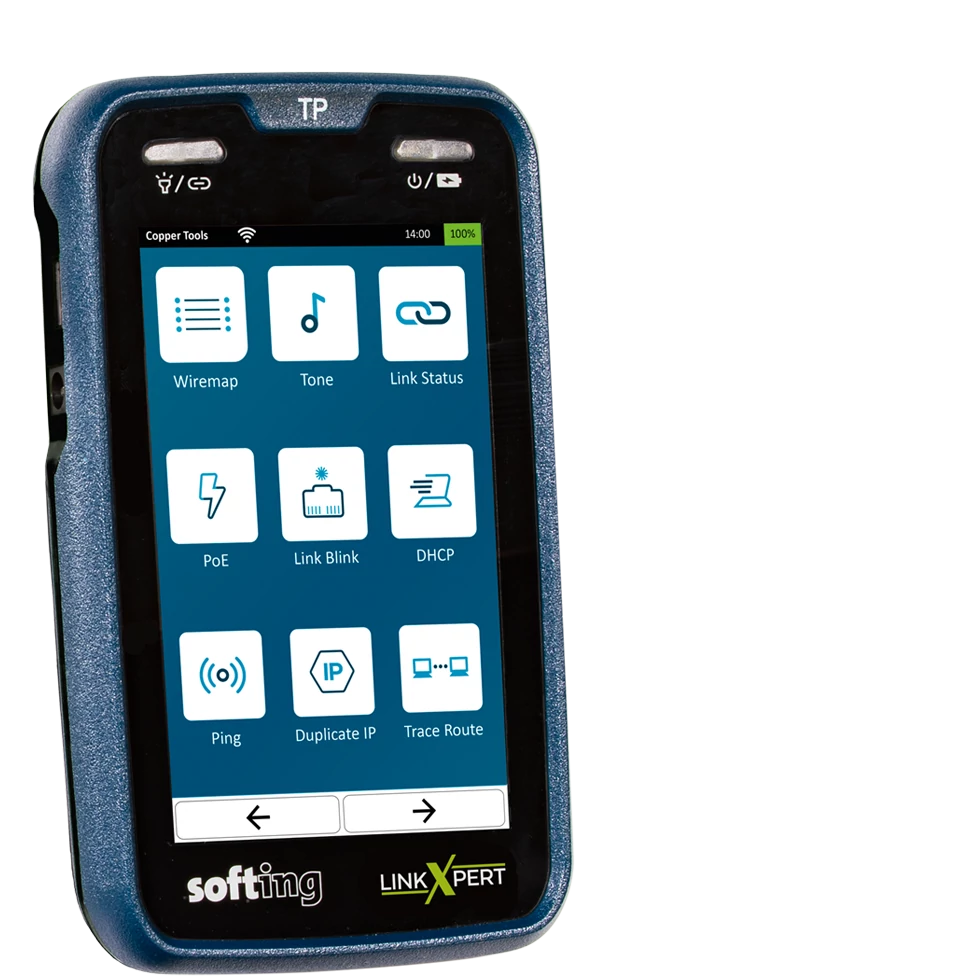

LinkXpert TP teszter

A LAN Kft. forgalmazásában:

• Copper cable and network tests Wiremap, length, tone generator, PoE++ load test, link speed detection, switch port LED activation, DHCP, DNS, ping, traceroute, network discovery, duplicate address scanner, LLDP, CDP, VLAN discovery/use, MAC spoofing
• Display 51/4" TFT touchscreen
• Dimensions 160 x 93 x 33mm
• Weight 400g (incl. battery)
• Rechargeable battery 7.2V Li-Ion 3.12Ah , internal, not user replaceable
• Battery life up to 8 hrs for Wiremap test
• Power supply (device) 12V DC, 2.5A, circular connector, Center Plus
• External power supply AC 100-240V / DC 12V, 3A , EURO, UK and US connection
• Voltage protection 60V DC, 55V AC
• Operating temperature -10 to 50°C
• Storage temperature -20 to 60°C
• Humidity 10% to 80%, non-condensing
• Copper cabling • Twisted pair, RJ45 connector • Coax, F-connector (with optional accessories)
• Adapter cables for other connectors such as M12 D, M12 X, IX available as accessories Ethernet 10Mb/s, 100Mb/s, 1000Mb/s
• PoE IEEE 802.3af, IEEE 802.3at up to class 8, 90W
• Ports • RJ45 • RJ11/RJ12, M12 D, M12 X and coax via optional adapter cables • USB-A Port
• Tone generator Integrated, configurable for twisted pair and coax cabling
• Flashlight Integrated, white LED
