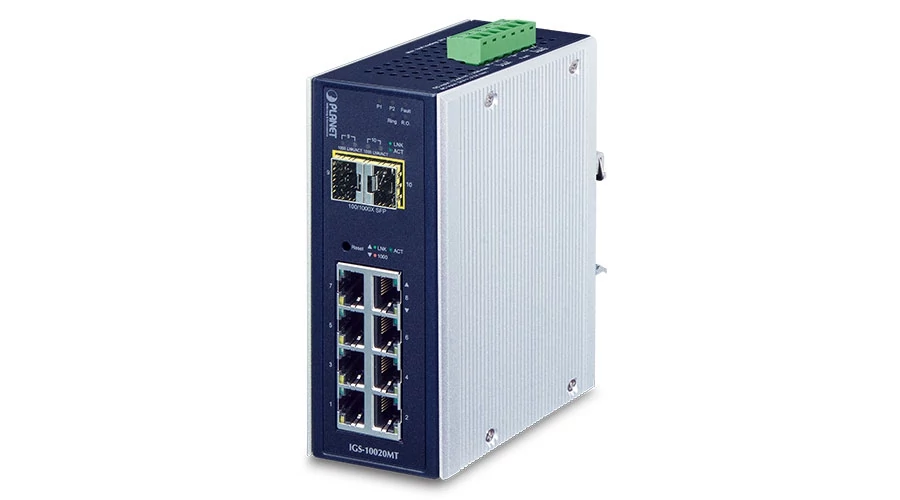

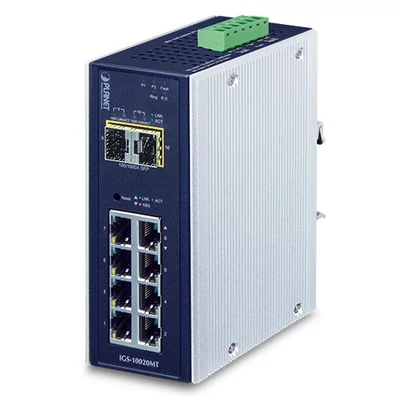

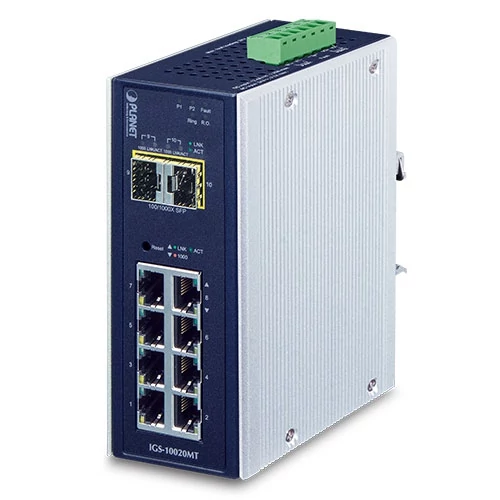

Planet IP30 Industral Managed Ehternet Switch

Planet IP30 Industral Managed Ehternet Switch

Ár:
120.140 Ft + ÁFA ( 152.578 Ft )
Cikkszám: LIGS-10020MT
Átlagos értékelés: Nem értékelt
A LAN Kft. forgalmazásában:
Hardware Specifications
Copper Ports 8 10/ 100/1000BASE-T RJ-45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slots 2 100/1000/2500BASE-X mini-GBIC SFP ports (Port-9 and Port-10)
Switch Architecture Store-and-Forward
Switch Fabric 26Gbps / non-blocking
Throughput (packet per second) 14.8Mpps
Address Table 8K entries, automatic source address learning and ageing
Shared Data Buffer 512 kilobytes
Flow Control IEEE 802.3x pause frame for full duplex. Back pressure for half duplex
Jumbo Frame 9Kbytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory Default
ESD Protection 6KV DC
Enclosure IP30 aluminum metal case
Installation DIN-rail kit and wall-mount kit
Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Alarm One relay output for power failure.
Alarm relay current carry ability: 1A @ DC 24V
LED Indicator System:
　Power 1 (Green)
　Power 2 (Green)
　Fault Alarm (Green)
　Ring (Green)
　R.O. (Green)
Per 10/100/1000T RJ-45 Ports:
　LNK/ACT (Green)
　1000 (Orange)
Per 100/1000/2500BASE-X SFP Interface:
　1G/2.5G LNK/ACT (Green)
　100 LNK/ACT (Orange)
Dimensions (W x D x H) 56 x 87.8 x 135 mm
Weight 720g
Power Requirements Dual 12~48V DC
24V AC
Power Consumption 10 watts / 34BTU (full loading)
Layer 2 function
Basic Management Interfaces Web Browser, Remote Telnet, SNMP v1, v2c
Secure Management Interface SSH, TLS, SNMP v3
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable
Power saving mode control
Port Status Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, and trunk status.
Port Mirroring TX/RX/Both
Many to 1 monitor
VLAN 802.1Q tagged VLAN ,up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs
Link Aggregation IEEE 802.3ad LACP / static trunk
Support 5 trunk groups with 10 ports per trunk
QoS Traffic classification based, strict priority and WRR
8-level priority for switching
　- Port number
　- 802.1p priority
　- 802.1Q VLAN tag
　- DSCP/TOS field in IP packet
IGMP Snooping IGMP (v1/v2/V3) Snooping, up to 255 multicast groups
IGMP Querier mode support
MLD Snooping MLD (v1/v2) Snooping, up to 255 multicast groups
MLD Querier mode support
Access Control List IP-based ACL / MAC-based ACL
Up to 123 entries
Bandwidth Control Per port bandwidth control
　Ingress: 500Kb~80Mbps
　Egress: 64Kb~80Mbps
SNMP MIBs RFC-1213 MIB-II
IF-MIB
RFC-1493 Bridge MIB
RFC-1643 Ethernet MIB
RFC-2863 Interface MIB
RFC-2665 Ether-Like MIB
RFC-2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC-2737 Entity MIB
RFC-2618 RADIUS Client MIB
RFC-2933 IGMP-STD-MIB
RFC3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Layer 3 Function
IP Interfaces Max. 8 VLAN interfaces
Routing Table Max. 32 routing entries
Routing Protocols IPv4 software static routing
IPv6 software static routing
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3bz 2.5GBASE-X
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management(CFM)
IEEE 1588 PTPv2
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
FRC 3810 MLD version 2
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring
Environment
Operating Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Elérhetőség: Előrendelhető
Szállítási díj: 2.908 Ft
Kívánságlistára teszem
Menny.:db
Kosárba rakom

Leírás

A LAN Kft. forgalmazásában:

Paraméterek Vélemények

Paraméterek

Ipari kivitel igen
működés Mono és Multi
Sebesség Gigabit
