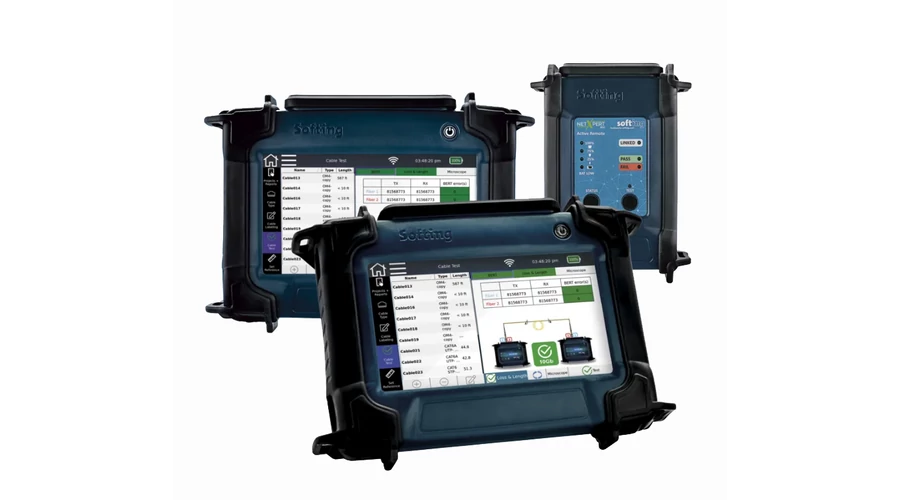

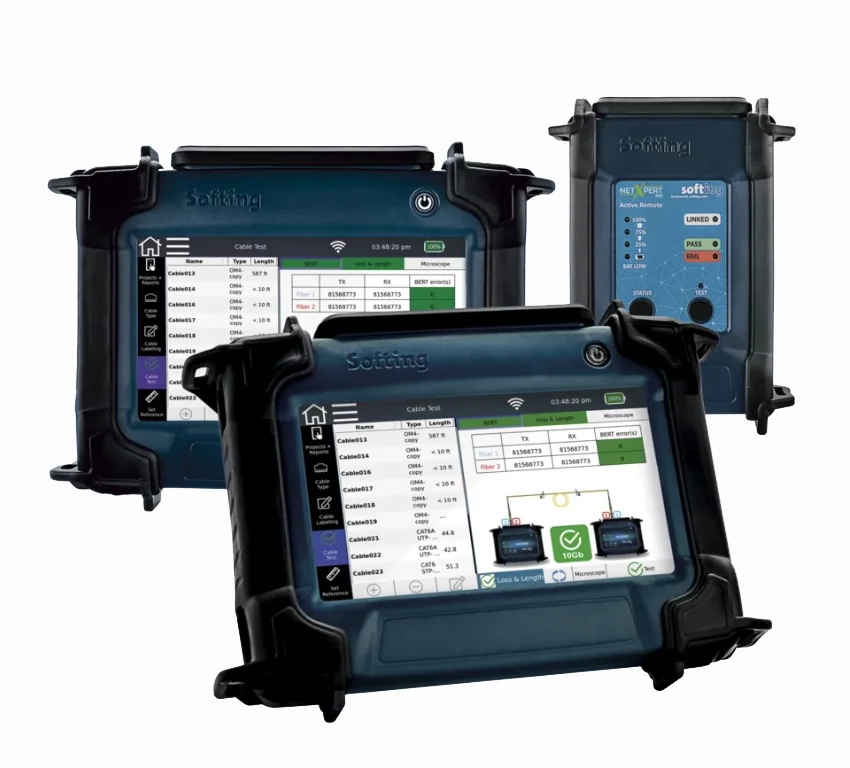

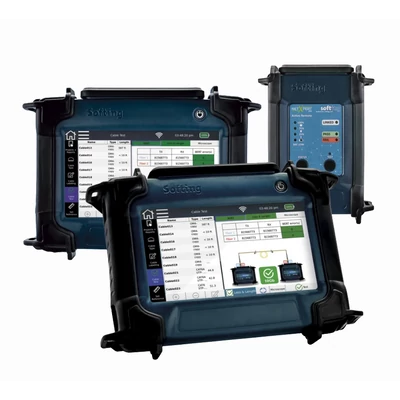

NetXpert XG2 PLUS kábel minősítő 10 Gbit

SPECIFICATIONS – ALL MODELS

Copper Interface

1 x Cat 6_A RJ45, interchangeable

Fiber Interface

2 x SFP slot 1 - 10Gb/s (please order SFP modules separatly)

Length Measurement Technology

Time-Domain Reflectometry (TDR) and capacitance

Cable Testing and ID

Up to 1000ft (305m)
– Split Pair Detection: 3ft (1m) to 1000ft (305m)
– Length Measurement: 0 to 1500ft (457m), ± (5%+1ft (30cm))
– Distance to fault: 0 to 656ft (200m) ± (5% + 3ft (1m))
– Supports 8 wiremap remotes (RJ 45) and 24 RJ45 ID only remotes

Power over Ethernet (PoE)

Test supports IEEE 802.3af PoE (Type 1, max 15.4W),
IEEE 802.3at PoE+ (Type 2, 30W) and 802.3bt PoE++ (Type 4, 90W)

Maximum Voltages

Maximum voltage that can be applied to any 2 connector pins without
causing damage to the tester: RJ45: 60VDC or 50VAC

Storage Capacity

Stores an unlimited number of cable tests per projects with user defined names

Tone Generation

Tone Frequencies: 730Hz and 1440Hz

Languages

English, German, French, Spanish, Italian

Battery

Li-Ion, 7.2 VDC, 10.05A-hr / up to 4hrs (typical)

External Power Supply

12VDC

Temperature

Operating: 14 to 140°F (-10 to 60°C)
Storage: -22 to 158°F (-30 to 70°)

Humidity

10 to 90% non-condensing

Enclosure

Injection molded plastic

Display

7˝ Color TFT-LCD capacitive touch display,
1024 x 600 resolution (WSVGA)

Size

245 x 177 x 83mm (Main unit)
130 x 177 x 55mm (Active Remote)

Weight with Battery

1.3kg (main unit)
0.6kg (Active Remote)
