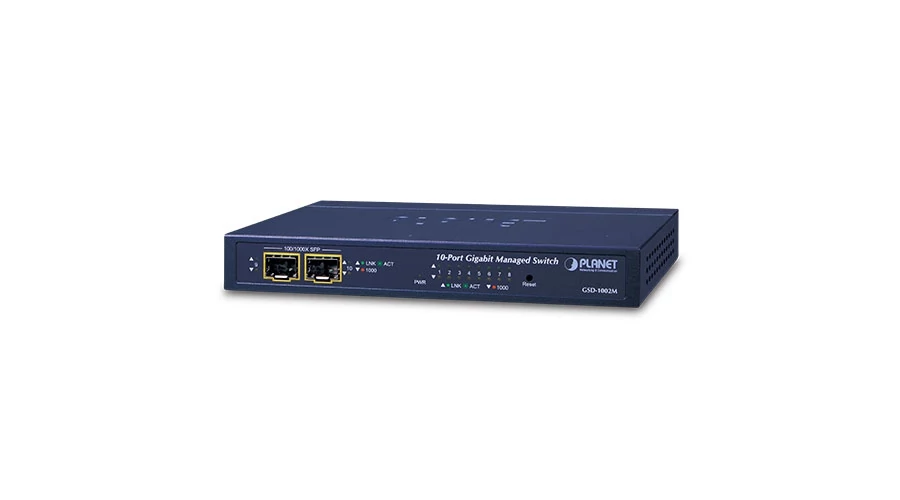

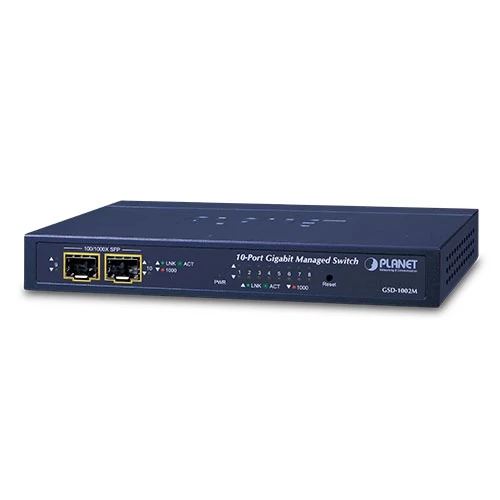

Planet GSD-1002M desktop gigabit switch 8 port 10/100/1000Mbps+2 100/1000X SFP

Planet GSD-1002M desktop gigabit switch 8 port 10/100/1000Mbps+2 100/1000X SFP

Ár:
39.830 Ft + ÁFA ( 50.584 Ft )
Cikkszám: LGSD-1002M
Átlagos értékelés: Nem értékelt
A LAN Kft. forgalmazásában:
Hardware Specifications
Copper Ports 8 x 10/100/1000Base-T RJ45 Auto-MDI/MDI-X port
SFP/mini-GBIC Slots 2 100/1000Base-X SFP interfaces
Supports 100/1000Mbps dual mode and DDM
Switch Architecture Store-and-Forward
Switch Fabric 20Gbps / non-blocking
Switch Throughput@64Bytes 14.8Mpps
Address Table 8K entries
Share Data Buffer 512K Bytes
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 10K bytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory Default
LED System:
　　　Power (Green)
10/100/1000T RJ45 Interfaces (Port 1 to Port 8):
　　　1000Mbps (Orange), LNK/ACT (Green)
100/1000Mbps SFP Interfaces (Port 9 to Port 10):
　　　1000Mbps (Orange), LNK/ACT (Green)
Power Requirements IEEE 802.3af / at PoE 48V ~ 56V DC in-line power
12V DC power adapter
ESD Protection 6KV DC
Power Consumption / Dissipation 10.9 watts / 37.2 BTU
Dimensions (W x D x H) 191 x 86 x 26 mm
Weight 396g
Enclosure Metal
Layer 2 Functions
Port Mirroring TX / RX / Both
Many-to-1 monitor
VLAN 802.1Q Tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Link Aggregation IEEE 802.3ad LACP and static trunk
Supports 8 groups of 8-port trunk
Spanning Tree Protocol STP / RSTP / MSTP
IGMP Snooping IGMP (v1/ v2 / v3) Snooping
IGMP Querier
Up to 256 multicast groups
MLD Snooping MLD (v1 / v2) Snooping, up to 256 multicast groups
Access Control List IPv4/IPv6 IP-based ACL / MAC-based ACL
QoS 8 mapping ID to 8 level priority queues
　- Port Number
　- 802.1p priority
　- 802.1Q VLAN tag
　- DSCP field in IP Packet
Traffic classification based, Strict priority and WRR
Security IEEE 802.1x – Port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS / TACACS+ user access authentication
IP-MAC port binding
MAC Filter
Static MAC Address
DHCP Snooping and DHCP Option 82
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
DoS Attack Prevention
ARP Inspection
IP Source Guard
Management Functions
Basic Management Interfaces Web browser / Telnet / SNMP v1, v2c
Firmware upgrade by HTTP / TFTP protocol through Ethernet network
Remote / Local Syslog
System log
LLDP protocol
SNTP
Secure Management Interfaces SSH, SSL, SNMP v3
SNMP MIBs RFC 3635 Ethernet-like MIB
RFC 2863 Interface Group MIB
RFC 2819 RMON (1, 2, 3, 9)
RFC 1493 Bridge MIB
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/100Base-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk with LACP
IEEE 802.1D Spanning Tree protocol
IEEE 802.1w Rapid Spanning Tree protocol
IEEE 802.1s Multiple Spanning Tree protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af (Power over Ethernet)
IEEE 802.3at (High Power over Ethernet)
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
Environment
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -20 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
