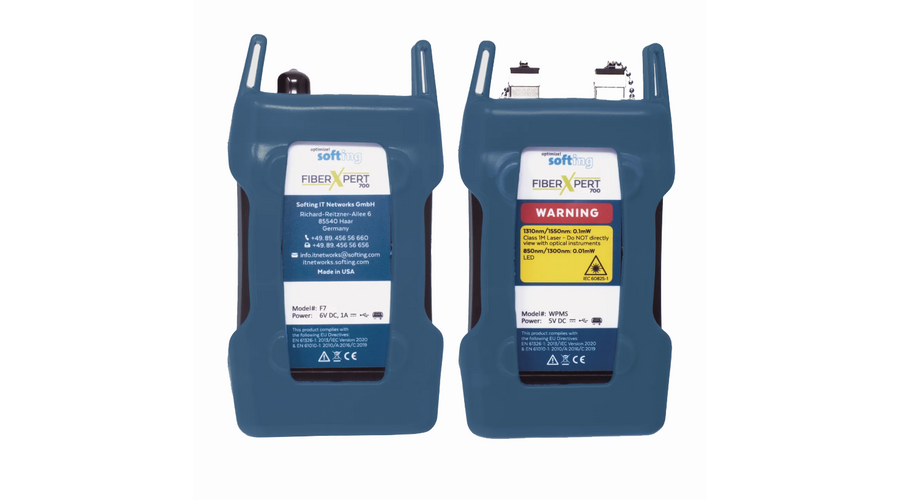

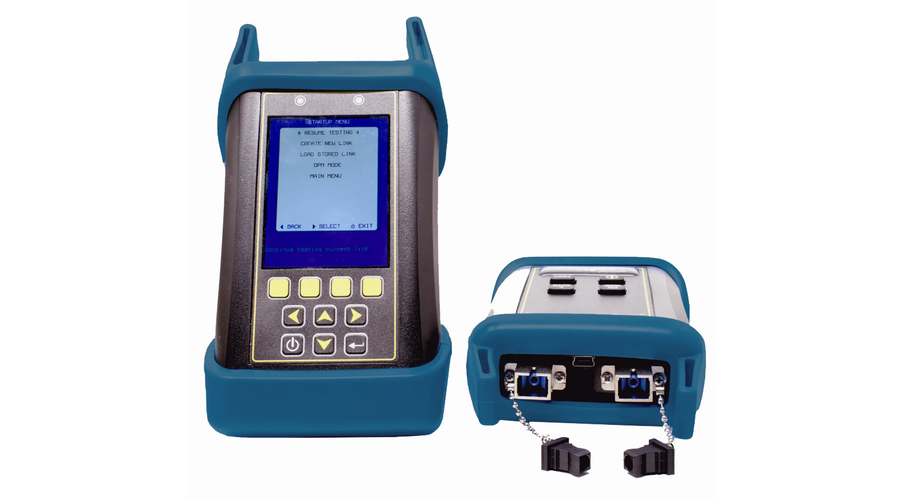

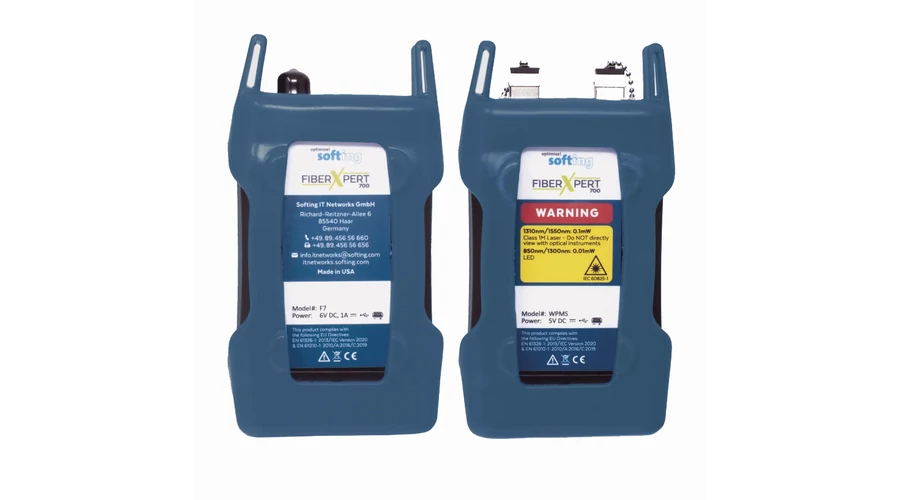

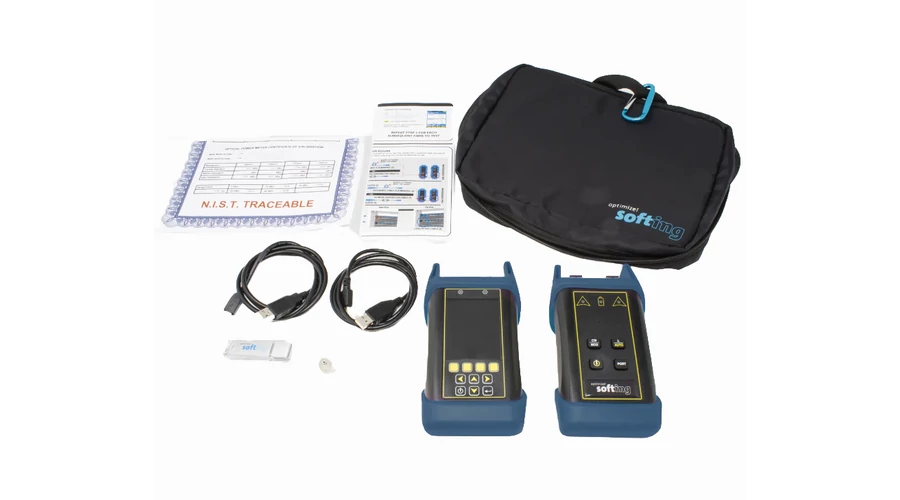

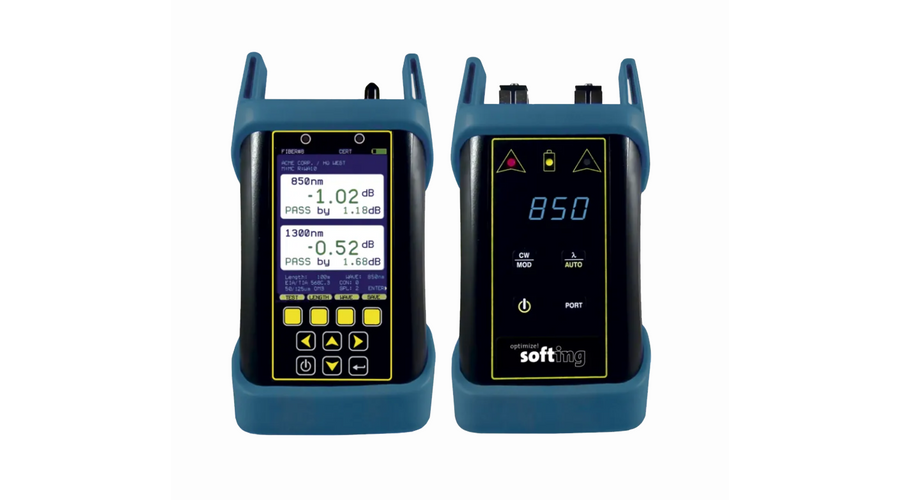

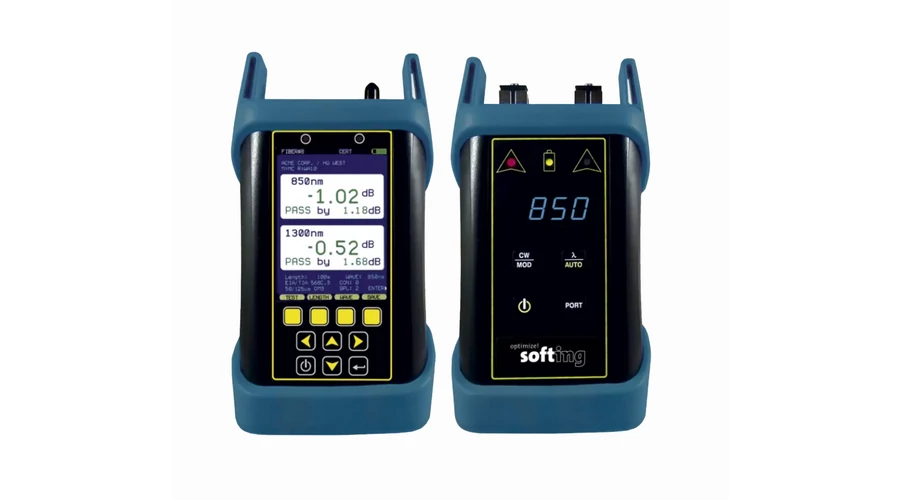

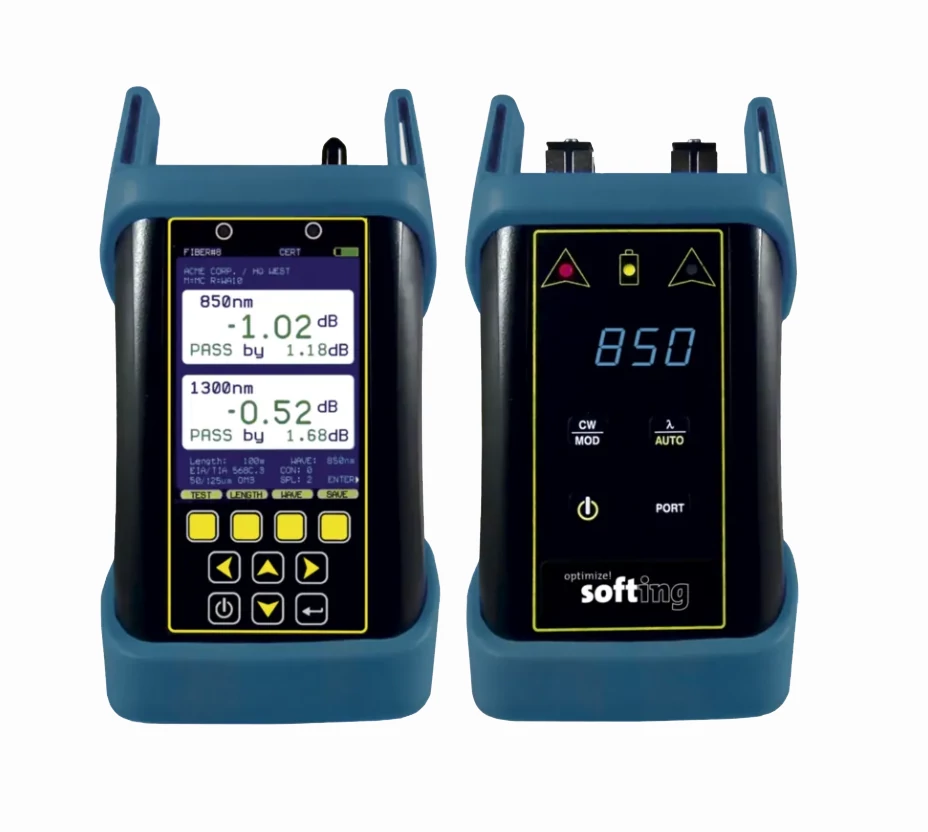

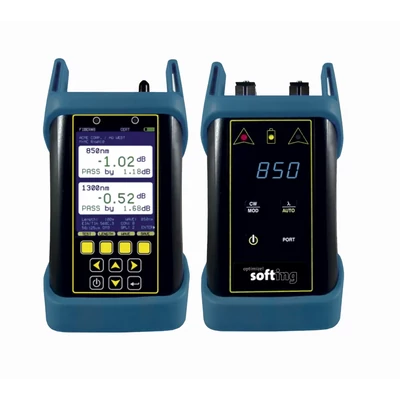

FiberXpert 700 optikai csillapítás mérő

A LAN Kft. forgalmazásában:

Parameters    Specification

• Detector Type InGaAs
• Calibrated Wavelengths1 850, 980, 1300, 1310, 1490, 1550, 1625
• Measurement Range +5 to -70dBm
• Accuracy ±0.15dB
• Display Resolution 0.01dB
• Battery Life Up to 50 hours (Lithium Polymer)
• Detector Connector Type 2.5mm / 1.25mm universal
• Data Storage Up to 10000 data points
• Displayed Measurement Units dBm, dB, mW, µW, nW
• Modes of Operation CERT, LOSS, OPM
• Display Type Hi-resolution Color LCD
• Auto-shutdown Yes
• Operating Temperature -10 to 55°C
• Storage Temperature -30 to 70°C
• Dimensions 2.9 x 4.49 x 1.3in (72.9 x 112.3 x 31.8mm)
• Weight 12oz (373g) 1

Bold wavelengths are NIST Traceable Conforms to the Harmonized European Standards EN 61326-1 and EN 61010-1.
