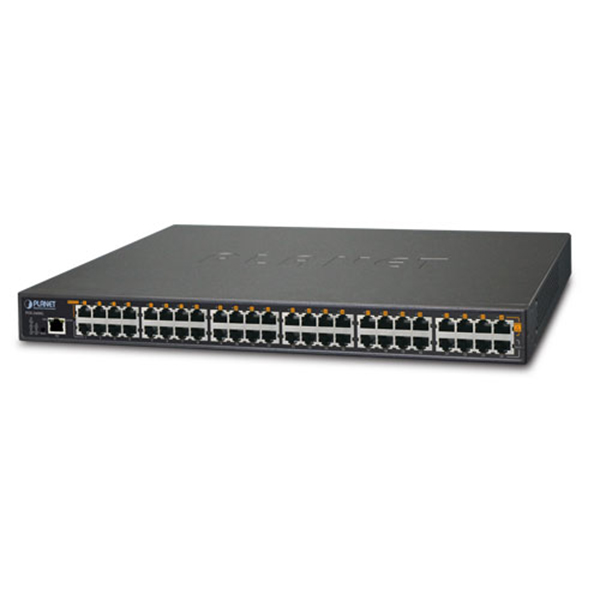

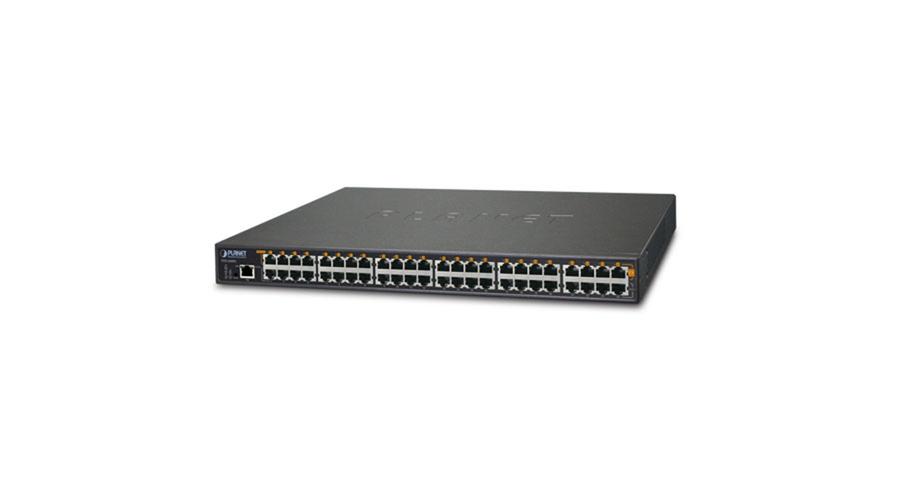

Planet gigabit PoE injector Hub,24-port RJ45.802.3af,Rack Mount,400W

Ár:
96.712 Ft + ÁFA ( 122.824 Ft )
Cikkszám: LPOE-2400G
Átlagos értékelés: Nem értékelt
A LAN Kft. forgalmazásában:
Hardware
Hardware Version 5
Interface “Data” Input Ports: 24 x RJ45
“Data+Power” Output Ports: 24 x RJ45
Management Port: 1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX
Data Rate 10/100/1000Mbps
LED System:
 SYS PWR x 1 (Green)
 PoE Failure x 1 (Red)
 Fan1 Failure x 1 (Red)
 Fan2 Failure x 1 (Red)
Per PoE Port: PoE-in-use x 1 (Green)
Management port x 2: 1000 (Green), 10/100 (Orange)
Network Cable 10BASE-T: 4-pair UTP Cat5 up to 100m (328ft)
100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft)
1000BASE-T: 4-pair UTP Cat5e/6 up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m)
Power Requirements 100-240V AC, 50/60 Hz, 8A
Power Consumption 500 watts (max.)
Ventilation Fan x 2
Dimensions (W x D x H) 440 x 300 x 44mm
Power over Ethernet
PoE Power Supply Type Mid-span
PoE Power Output Per port DC 52V 30.8/15.4 watts
Power Pin Assignment 4/5(+), 7/8(-)
PoE Power Budget 440 watts@0~40 degrees C
400 watts@41~50 degrees C
Auto power budget control by over temperature protection function
Number of 802.3af PDs (Class 0, 1, 2, 3) can be powered 24
Number of 802.3at PDs (Class 1, 2, 3) can be powered 14
Number of 802.3at PDs (Class 0, 4) can be powered 14
Management
Management Interface Web, PLANET Smart Discovery Lite
PoE Management Power limit by consumption and classification mode
PoE admin mode
Per port power schedule
Per port power enable/disable
Power feeding priority
Over temperature protection
Current per port usage and status
Total power consumption
Management Feature Setup of system/management functions
Web firmware upgrade
SNMP trap for alarm notification of events
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
RFC 768: UDP
RFC 791: IP
RFC 2068 HTTP
RFC 1157: SNMP v1
RFC 1902: SNMP v2c
RFC 5424: Syslog
Environments
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
Elérhetőség: 1 db raktáron
Szállítási díj: 991 Ft
Menny.:db

Leírás

A LAN Kft. forgalmazásában:

Paraméterek

PoE igen
Sebesség Gigabit
